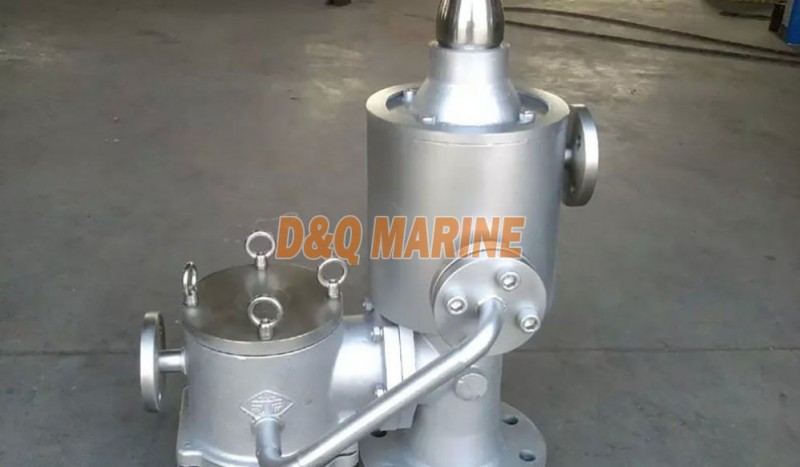

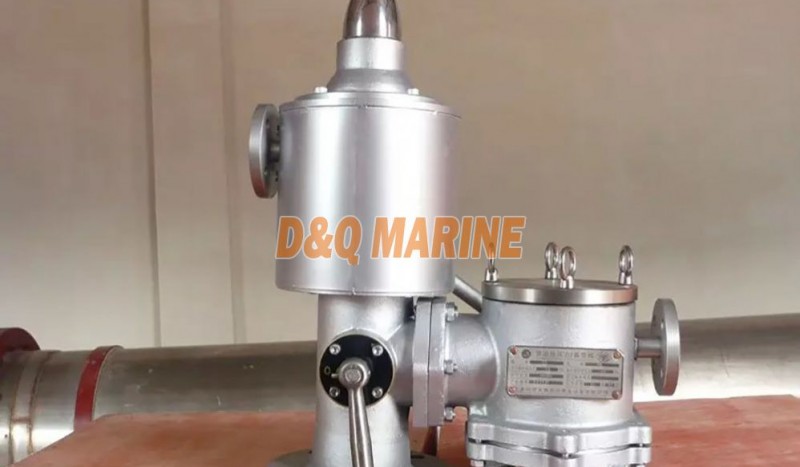

High Velocity Pressure Vacuum Valve with Heating Device
Category:
PV Valves
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
High Velocity Pressure Vacuum Valve with Heating Device:
China High Velocity Pressure Vacuum Valve with Heating Device:

In accordance with the requirements of ISO15364, if the vessel navigates constantly in the poor ice conditions, it is very likely that the crystallization of the goods happens due to the vapor condensation.So that High Velocity Pressure Vacuum Valve should be required with the heating device. The heating is achieved by steam supplied by the vessel.

The heating device is with simple structure, can be heated rapidly & circularly with hot steam and thermal fluid less than 1.2Mpa.

Technical Specification:

1. Design Standard: ISO 15364-2007, MSC/circ. 677, GB/T19699-2012, MSC.1/circ. 1324, MSC/circ. 1009

2. Flange Standard: GB2506, JIS B2220, ANSI, DIN

3. Design Pressure:

Opening Pressure of Pressure valve: 14Kpa for Oil cargo tank, 20Kpa fo chemical cargo tank.

Opening pressure of Vacuum Valve: -3.5Kpa.

Certificate:

CCS, BV, ABS Type Approval Certificate and Product Certificate, NK product certificate

Technical Parameters:
Type Desinged Opening Pressure(Kpa) Rated Working Pressure (Kpa) Hydraulic Test Press (Mpa) Velocity (m/s) Rated Flow Rate(m3/h)
Pressure Valve Vacuum Valve Pressure Valve Vacuum Valve Pressure Valve Vacuum Valve
DF50 14~20 -3.5 21 -7 0.345 ≥30 300 300
DF65 400 400
DF80 600 500
DF100 800 600
DF125 1000 800
DF150 2500 2200
DF200 3000 3000
DF250 3500 3000
