GB/T 178-96 Spiral Chain Stopper:

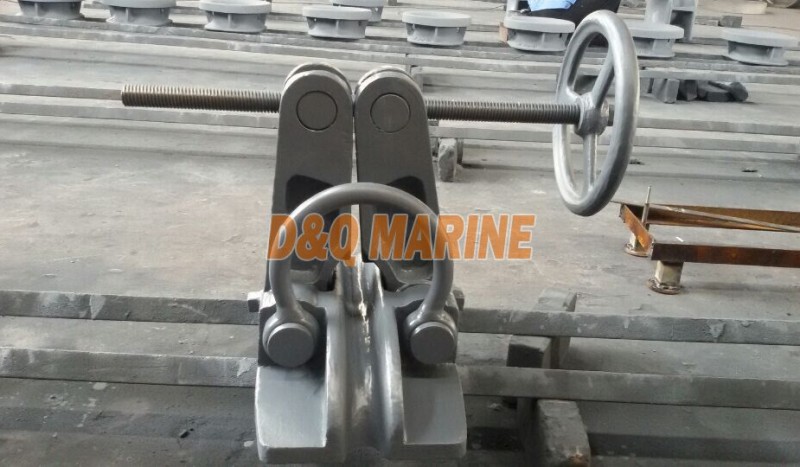

GB/T 178-96 Spiral Chain Stopper
Description:
GBT 178-96 Spiral Chain Stopper.
Durable, long lifetime.
Drawing:
Size Chart:
| GB/T 178-96 spiral type chain stopper/ screw type chain stopper | ||||
| Suitable for chain diameter 22-102mm ,A type suitable to grade 2 anchor chain. | ||||
| Chain diameter | B | c | d | d2 |
| 22-26 | 280 | 190 | T26*8/2 | 25 |
| 28-32 | 310 | 210 | T28*8/2 | 26 |
| 34-38 | 360 | 250 | T30*10/2 | 30 |
| 40-44 | 420 | 290 | T32*10/2 | 34 |
| 46-48 | 480 | 330 | T36*10/2 | 36 |
| 52-58 | 550 | 380 | T40*10/2 | 40 |
| 60-66 | 640 | 440 | T44*12/2 | 40 |
