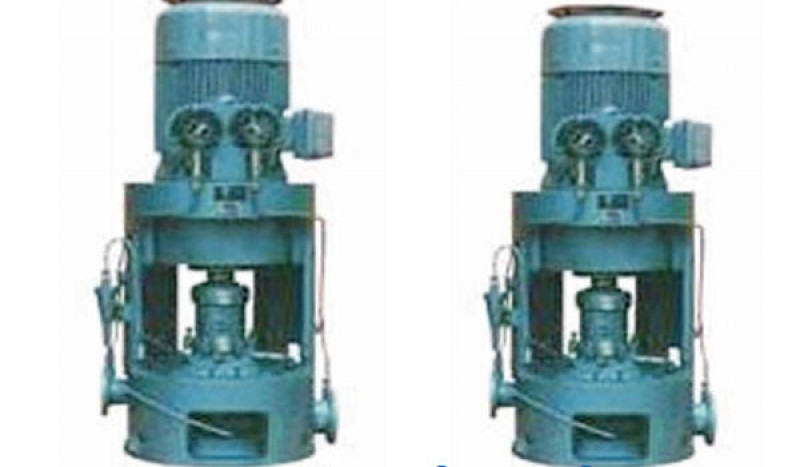

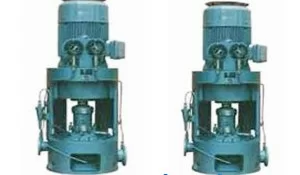

CLH Series marine vertical centrifugal pump
China CLH Series marine vertical centrifugal pump:
CLH series vertical sea water pump is suitable for all kinds of ships and warships as ballast pump, bilge pump, cooling pump, drainage pump and fire pump.It can also be used as a water supply pump for desalination plants and various water tanks, as well as a booster pump for petrochemical pipelines, hot and cold water circulation and domestic water for high-rise buildings.
CLH Series marine vertical centrifugal pump
Main Technical Data
| Model |
Flow rate Q（m³/h） |
Lift m |
Rev speed r/min |
Motor power (KW) |
| CLH25-25-6.5 | 3 | 8 | 2950 | 0.37 |
| CLH40-32-2 | 5 | 45 | 3 | |
| CLH40-32-2.5 | 10 | 60 | 3.5 | |
| CLH40-32-3 | 10 | 45 | 4 | |
| CLH40-32-3.5 | 5 | 25 | 1.5 | |
| CLH40-32-5 | 10 | 25 | 2.2 | |
| CLH50-32-2 | 12.5 | 8 | 11 | |
| CLH50-32-3 | 12.5 | 65 | 7.5 | |
| CLH50-32-3.5 | 12.5 | 50 | 5.5 | |
| CLH50-32-4.5 | 12.5 | 32 | 3 | |
| CLH50-32-6.5 | 12.5 | 20 | 2.2 | |
| CLH50-40-7 | 20 | 25 | 4 | |
| CLH50-50-4.5 | 20 | 45 | 5.5 | |
| CLH65-40-2.5 | 25 | 110 | 22 | |
| CLH65-40-3 | 25 | 80 | 15 | |
| CLH65-40-4 | 25 | 65 | 11 | |
| CLH65-40-4.5 | 25 | 50 | 7.5 | |
| CLH65-50-6.5 | 25 | 32 | 5.5 | |
| CLH65-50-8.5 | 30 | 25 | 5.5 | |
| CLH65-50-9 | 25 | 20 | 3 | |
| CLH65-65-5.5 | 30 | 45 | 7.5 | |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
