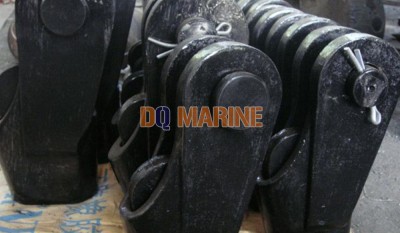

Wedge-Shaped Wire Rope Link:
Wedge-Shaped Wire Rope Link Introduction
The wire rope diameter is from 6mm to 53mm.
Product Details
The parameter table
| TYPE | Wire Rope Diameter(mm) | Dimensions (mm) | Weight (Kg) | ||||
| A | B | D | R | H | |||
| CZTH2406 | 6 | 29 | 13 | 16 | 20 | 90 | 0.9 |
| CZTH2408 | 8 | 31 | 15 | 18 | 22 | 100 | 1.2 |
| CZTH2410 | 10 | 38 | 18 | 20 | 25 | 120 | 1.5 |
| CZTH2412 | 12 | 44 | 20 | 25 | 30 | 155 | 2.5 |
| CZTH2414 | 14 | 51 | 23 | 30 | 35 | 180 | 4 |
| CZTH2416 | 16 | 60 | 26 | 34 | 42 | 200 | 6.2 |
| CZTH2418 | 18 | 64 | 28 | 36 | 44 | 220 | 9 |
| CZTH2420 | 20 | 72 | 30 | 38 | 47 | 240 | 10.5 |
| CZTH2422 | 22 | 76 | 32 | 40 | 52 | 250 | 14 |
| CZTH2424 | 24 | 83 | 35 | 50 | 60 | 270 | 17 |
| CZTH2426 | 26 | 92 | 38 | 55 | 65 | 290 | 22 |
| CZTH2428 | 28 | 94 | 40 | 60 | 70 | 305 | 27 |
| CZTH2432 | 32 | 110 | 44 | 65 | 77 | 370 | 38 |
| CZTH2436 | 36 | 122 | 48 | 70 | 85 | 400 | 58 |
| CZTH2440 | 40 | 140 | 55 | 75 | 90 | 450 | 74 |
| CZTH2444 | 44 | 140 | 60 | 80 | 90 | 480 | 82 |
| CZTH2448 | 48 | 144 | 65 | 85 | 95 | 500 | 88 |
| CZTH2453 | 53 | 162 | 70 | 90 | 100 | 540 | 110 |
