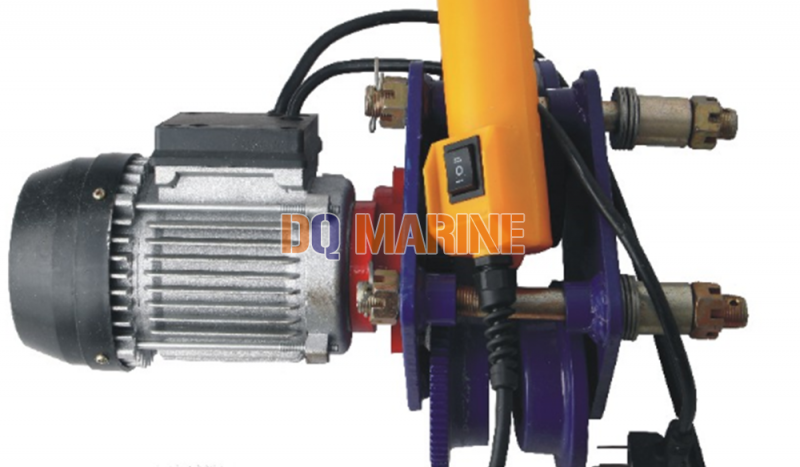

Trolley For Mini Electric Hoist
Trolley For Mini Electric Hoist introduction
Light Weight, Easy to operate and carry.
220V voltage is convenient for household use.
Product Details
The parameter table
| Model | 0.5 | 1 | |
| Rated Load( T) | 0.5 | 1 | |
| Test Load(T) | 0.6 | 1.2 | |
| Lifting Height(m) | 3 | 3 | |
| Running Speed (m/min) | 16.4 | 16.4 | |
| Motor Model | D25034 | D25035 | |
| Power(W) | 60 | 300 | |
| Speed(RPM) | 1400 | 1400 | |
| Min Turning Radius(CM) | 1000 | 1000 | |
| Dimensions(mm) | A | 320 | 340 |
| B | 203 | 203 | |
| C | 314 | 3614 | |
| D | 253 | 253 | |
| F | 2 | 2 | |
| Net Weight (kg) | 8 KG | 19KG | |
