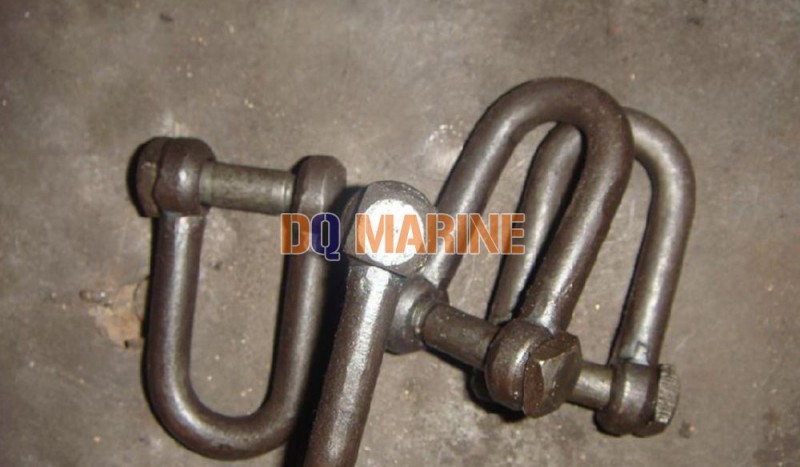

Trawling Shackles with Square Head Screw Pin
Introduction
Trawling shackles with square head screw pin adopt European standard, the material is carbon steel, and the production process is the free forging process. Surface only can keep the original color.
Details
| WLL (t) | Dimensions (mm) | Weight (Ibs) | ||||
| D | d | a | c | e | ||
| 0.2 | 8 | 8 | 16 | 32 | 18 | 15.4 |
| 0.3 | 10 | 10 | 20 | 38 | 20 | 29.6 |
| 0.5 | 12 | 12 | 25 | 51 | 26 | 55.2 |
| 0.8 | 16 | 16 | 32 | 63 | 33 | 117 |
| 1.1 | 20 | 20 | 38 | 76 | 40 | 203 |
| 1.5 | 22 | 22 | 45 | 88 | 50 | 309 |
| 2 | 25 | 25 | 51 | 102 | 57 | 474.4 |
| 2.6 | 28 | 28 | 57 | 114 | 68 | 662 |
| 3.8 | 32 | 32 | 63 | 127 | 73 | 1004 |
| 4.5 | 38 | 38 | 76 | 152 | 85 | 1677 |
