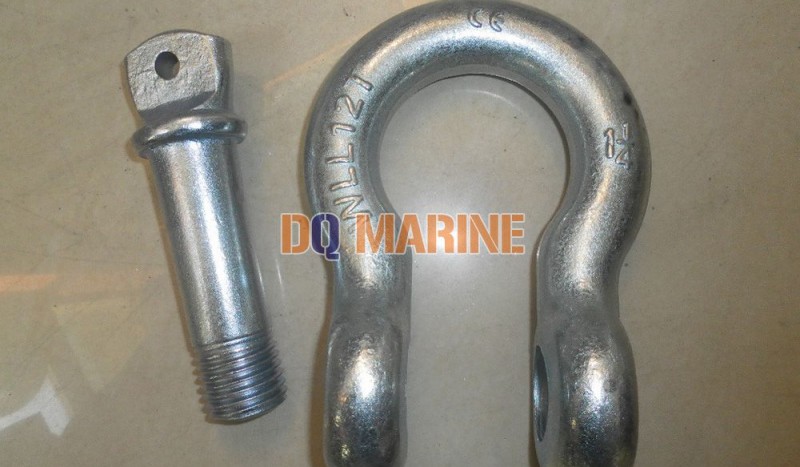

Screw Or Round Pin Anchor Shackles
Category:
Shackles
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Screw Or Round Pin Anchor Shackles:
Description

G209 / G213 US Type Shackles, Noumenon material was made by 45 steel, lateral pin was made by 40Cr steel. Manufacturing process is die forging process, surface can be electro galvanizing, hot galvanizing, dacromet, environmental protection galvanizing, and spray - plastic treatment.

Max Proof Load is 2.2 Times the WLL, Min Break Strength is 6 Times the WLL.

Type and Specification

Size (in) WLL (t) Dimensions (in) Weight (Ibs)
A B C D E F G H L M P G-209 S-209 G-213 S-213
3/16 1/3 0.38 0.25 0.88 0.19 0.6 0.56 0.98 1.47 0.16 1.14 0.19 0.05
1/4 1/2 0.47 0.31 1.13 0.25 0.78 0.61 1.28 1.84 0.19 1.43 0.25 0.12 0.13
5/16 3/4 0.53 0.38 1.22 0.31 0.84 0.75 1.47 2.09 0.22 1.71 0.31 0.19 0.17
3/8 1 0.66 0.44 1.44 0.38 1.03 0.91 1.78 2.49 0.25 2.02 0.38 0.31 0.25
7/16 1 1/2 0.75 0.5 1.69 0.44 1.16 1.06 2.03 2.91 0.31 2.37 0.44 0.38 0.38
1/2 2 0.81 0.63 1.88 0.5 1.31 1.19 2.31 3.28 0.38 2.69 0.5 0.63 0.7
5/8 3 1/4 1.06 0.75 2.38 0.63 1.69 1.5 2.94 4.19 0.44 3.34 0.69 1.38 1.5
3/4 4 3/4 1.25 0.88 2.81 0.75 2 1.81 3.5 4.97 0.5 3.97 0.81 2.25 2.32
7/8 6 1/2 1.44 1 3.31 0.88 2.28 2.09 4.03 5.83 0.5 4.5 0.97 3.38 3.4
1 8 1/2 1.68 1.13 3.75 1 2.69 2.38 4.69 6.56 0.56 5.13 1.06 5.32 5
1 1/8 9 1/2 1.81 1.25 4.25 1.16 2.91 2.69 5.16 7.47 0.63 5.71 1.25 6.81 6.97
1 1/4 12 2.03 1.38 4.69 1.29 3.25 3 5.75 8.25 0.69 6.25 1.38 9.5 9.75
1 3/8 13 1/2 2.25 1.5 5.25 1.42 3.63 3.31 6.38 9.16 0.75 6.83 1.5 13.25 13.23
1 1/2 17 2.38 1.63 5.75 1.54 3.88 3.63 6.88 10 0.81 7.33 1.62 17.2 17.25
1 3/4 25 2.88 2 7 1.84 5 4.19 8.86 12.34 1 9.06 2.25 30.38 29.46
2 35 3.25 2.25 7.75 2.08 5.75 4.81 9.97 13.68 1.22 10.35 2.4 45 45.75
2 1/2 55 4.13 2.75 10.5 2.71 7.25 5.69 12.87 17.84 1.38 13 3.13 85.75
