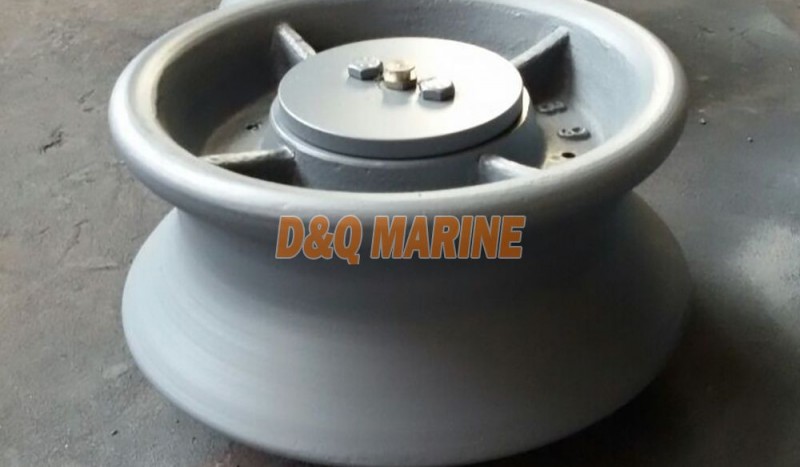

DIN81906 Germany Standard Fairlead Roller
DIN81906 Germany Standard Fairlead Roller
Description:
This product is mainly used for lead the rope, it can made from cast iron or cast steel material,its service life is long. According to client's requirement, we can install it on a pedestal to suitable for client use.
Certificate: ABS, LR, BV, GL, DNV, CCS,mill certificate etc.
Production time:about 15 to 25 days.
Drawing:
Size Chart:
| DIN 81906-1999 Fairlead roller | ||||
| Product No. | D | H | Fa | Weight |
| (mm) | (mm) | (KN) | (KG) | |
| D8R-001 | 160 | 80 | 10 | 14 |
| D8R-002 | 200 | 102 | 20 | 20 |
| D8R-003 | 250 | 126 | 32 | 33 |
| D8R-004 | 320 | 160 | 50 | 72 |
| D8R-005 | 400 | 208 | 80 | 140 |
| D8R-006 | 450 | 256 | 125 | 240 |
| D8R-007 | 500 | 278 | 200 | 320 |
| D8R-008 | 560 | 348 | 320 | 580 |
