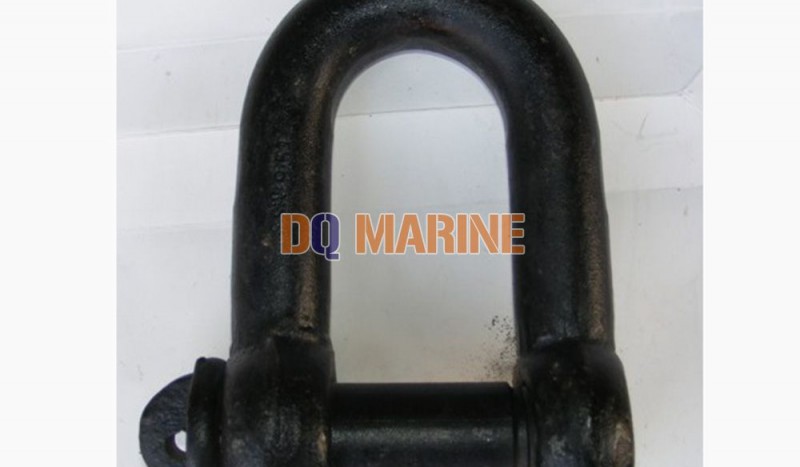

Commercial Shackles
Description
This product adopts the Chinese standard, the material is Q235 carbon steel, and the production process is the free forging process. Surface can be electro galvanizing, hot galvanizing, dacromet, environmental protection galvanizing, and spray - plastic treatment.
Details
| Size (t) | WLL (Ibs) | Max Diameter of wire rope | Dimensions(mm) | ||||
| d1 | d | L | B | H | |||
| 0.2 | 441 | 4.7 | M8 | 6 | 35 | 12 | 35 |
| 0.3 | 728 | 6.5 | M10 | 8 | 44 | 16 | 45 |
| 0.5 | 1103 | 8.5 | M12 | 10 | 55 | 20 | 50 |
| 0.9 | 2052 | 9.5 | M16 | 12 | 65 | 24 | 60 |
| 1.4 | 3199 | 13 | M20 | 16 | 86 | 32 | 80 |
| 2.1 | 4634 | 15 | M24 | 20 | 101 | 36 | 90 |
| 2.7 | 5958 | 17.5 | M27 | 22 | 111 | 40 | 100 |
| 3.3 | 7282 | 19.5 | M30 | 24 | 123 | 45 | 110 |
| 4.1 | 9709 | 22 | M33 | 27 | 137 | 50 | 120 |
| 4.9 | 10812 | 26 | M36 | 30 | 153 | 58 | 130 |
| 6.8 | 15004 | 28 | M42 | 36 | 176 | 64 | 150 |
| 9 | 21624 | 31 | M48 | 42 | 197 | 70 | 170 |
| 10.7 | 23610 | 34 | M52 | 45 | 218 | 80 | 190 |
| 16 | 35305 | 43.5 | M64 | 52 | 262 | 99 | 235 |
| 21 | 46337 | 43.5 | M76 | 65 | 321 | 100 | 256 |
