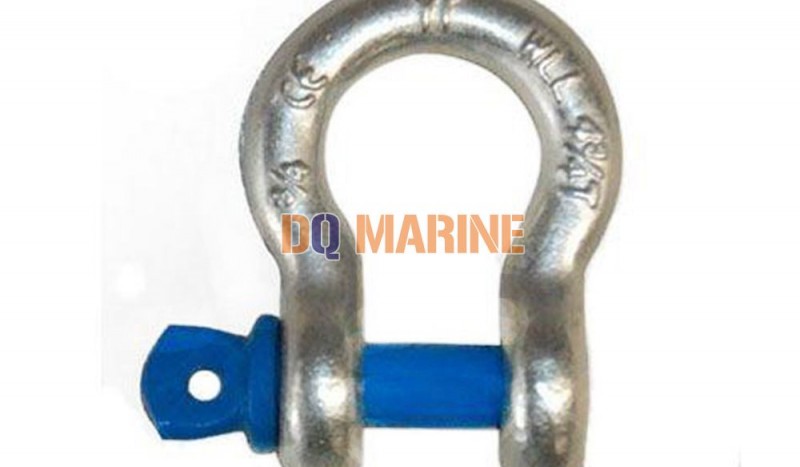

Large Bow Shackles BS3032
Introduction
Large Bow Shackles BS3032 adopts British standard, the material is 45 carbon steel, and the production process is the free forging process. Surface only can keep the original color. It is used in ports, electricity, ships, oil and construction.
MB proof load= 2 times to WLL
Details
| WLL (kg) | Dimensions (mm) | |||||
| d | D | W | 2r | S | e | |
| 150 | 6 | 10 | 13 | 19 | 29 | |
| 450 | 10 | 12 | 16 | 25 | 41 | 19 |
| 750 | 12 | 16 | 22 | 32 | 54 | 25 |
| 1250 | 16 | 20 | 29 | 41 | 70 | 32 |
| 2000 | 20 | 22 | 35 | 51 | 86 | 44 |
| 2750 | 22 | 25 | 41 | 57 | 98 | 51 |
| 3750 | 25 | 28 | 44 | 64 | 108 | 57 |
| 4750 | 28 | 32 | 51 | 73 | 124 | 64 |
| 5750 | 32 | 35 | 57 | 83 | 137 | 70 |
| 8500 | 38 | 44 | 70 | 98 | 168 | 89 |
| 11500 | 45 | 51 | 86 | 121 | 206 | 102 |
| 15000 | 50 | 57 | 98 | 140 | 238 | 114 |
