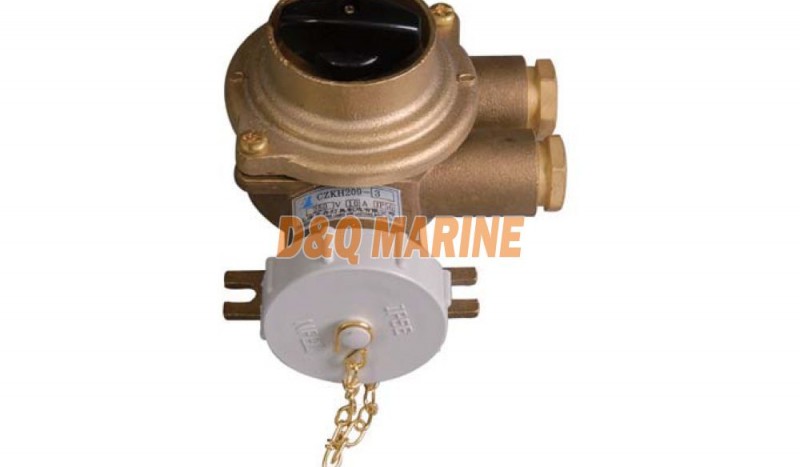

CKZH 10A/16A Marine Brass Socket With Switch
Products feature and Products certification
1.Products protection class: IP56.2.Cable outside diameter is Φ12mm.
3.Products approved by CE (European Conformity) and CCS (China Classification Society).
Adopt Standard
DIN89262Installation
CKZH 10A/16A Marine Brass Socket With Switch Specification
| Voltage(V) | 24 | 125 | 250 | 500 | |
| Code | 1144 | ||||
| General Cable Type | CZKH101-1 | CZKH101-2 | CZKH101-3 | CZKH101-4 | CZKH101-5 |
| Shield Cable Type | CZKH111-1 | CZKH111-2 | CZKH111-3 | CZKH111-4 | CZKH111-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1144/R | ||||
| General Cable Type | CZKH109-1 | CZKH109-2 | CZKH109-3 | CZKH109-4 | CZKH109-5 |
| Shield Cable Type | CZKH119-1 | CZKH119-2 | CZKH119-3 | CZKH119-4 | CZKH119-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1144/D | ||||
| General Cable Type | CZKH201-1 | CZKH201-2 | CZKH201-3 | CZKH201-4 | CZKH201-5 |
| Shield Cable Type | CZKH211-1 | CZKH211-2 | CZKH211-3 | CZKH211-4 | CZKH211-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1144/2 | ||||
| General Cable Type | CZKH202-1 | CZKH202-2 | CZKH202-3 | CZKH202-4 | CZKH202-5 |
| Shield Cable Type | CZKH212-1 | CZKH212-2 | CZKH212-3 | CZKH212-4 | CZKH212-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1144/2/R | ||||
| General Cable Type | CZKH209-1 | CZKH209-2 | CZKH209-3 | CZKH209-4 | CZKH209-5 |
| Shield Cable Type | CZKH219-1 | CZKH219-2 | CZKH219-3 | CZKH219-4 | CZKH219-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
