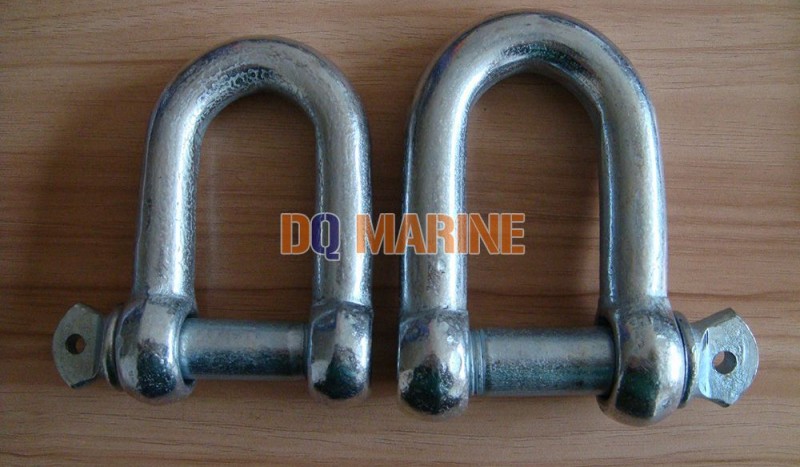

European Type Large Dee Shackles
Description
This product adopts the European standard, the material is Q235 carbon steel, and the production process is the free forging process. Surface can be electro galvanizing, hot galvanizing, dacromet, environmental protection galvanizing, and spray - plastic treatment.
Details
Same Size Diameter Pin with Body
| WLL (Kg) | Dimensions(mm) | Weight 100pcs (Ibs) | ||||
| D | d | a | c | b | ||
| 80 | 5 | 5 | 10 | 19 | 11 | 4 |
| 100 | 6 | 6 | 13 | 25 | 14 | 8 |
| 200 | 8 | 8 | 16 | 32 | 18 | 15 |
| 320 | 10 | 10 | 19 | 38 | 20 | 29 |
| 520 | 12 | 12 | 25 | 51 | 26 | 57 |
| 800 | 16 | 16 | 32 | 64 | 33 | 110 |
| 1100 | 20 | 20 | 38 | 76 | 40 | 177 |
| 1500 | 22 | 22 | 44 | 89 | 50 | 287 |
| 2100 | 25 | 25 | 51 | 100 | 57 | 441 |
| 3000 | 28 | 28 | 57 | 115 | 68 | 684 |
| 3500 | 32 | 32 | 64 | 127 | 73 | 949 |
| 5000 | 38 | 38 | 76 | 152 | 85 | 1545 |
| 7000 | 45 | 45 | 90 | 180 | 96 | 2758 |
| 8000 | 50 | 50 | 102 | 200 | 108 | 3861 |
