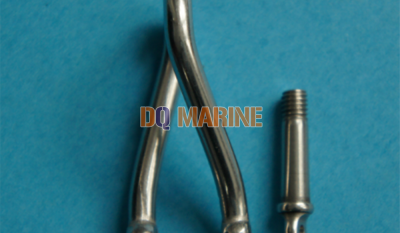

Stainless Steel Twisted Shackle:
Stainless Steel Twisted Shackle Introduction
The material: AISI304/AISI316
The Top of the pin and the shackle body twisted 90 degrees. Used to change the connecting direction.
The Product Detail
| Size (M) | C | H | W | D | BL | WT |
| mm | mm | mm | mm | mm | KG | KG |
| M4 | 4 | 23 | 8 | 8 | 500 | 0.01 |
| M5 | 5 | 28 | 10 | 10 | 800 | 0.02 |
| M6 | 6 | 33 | 12 | 12 | 1100 | 0.03 |
| M8 | 8 | 44 | 16 | 16 | 2000 | 0.07 |
| M10 | 10 | 55 | 20 | 20 | 3200 | 0.13 |
| M12 | 12 | 66 | 24 | 24 | 4400 | 0.23 |
