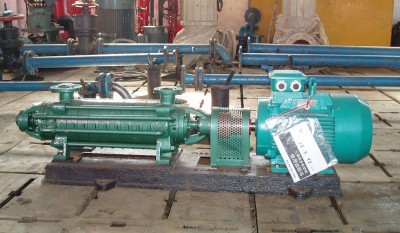

Marine boiler feed water pump
Marine boiler feed water pump
Type GCJ series pump is centrigugal pumps of single suction and multi-stage segmental type which can be used to transport clean water and liquids with physical and chemical nature similar to water.The liquid temperature is not higher than 110 ℃ .It is suitable for water feeding to boilers, and water supplying to factories and cities.
Technical Parameter:
| No of | Rate of flow (Q) | Total | Rotating | Power (Kw) | Efficiency | Permissible | OD of | |||
| stages | head | speed | suction head | imperller | ||||||
| m3/h | L/sec | H(m) | rpm | shaft | motor | % | H(m) | (mm) | ||
| 2 | 6 | 1.66 | 46 | 2950 | 2 | 3 | 38 | 65 | 136 | |
| 3 | 6 | 1.66 | 69 | 2950 | 3 | 4 | 38 | 65 | 136 | |
| 4 | 6 | 1.66 | 92 | 2950 | 4 | 5.5 | 38 | 65 | 136 | |
| 5 | 6 | 1.66 | 115 | 2950 | 5 | 7.5 | 38 | 65 | 136 | |
| 6 | 6 | 1.66 | 138 | 2950 | 6 | 7.5 | 38 | 65 | 136 | |
| 7 | 6 | 1.66 | 161 | 2950 | 7 | 7.5 | 38 | 65 | 136 | |
| 8 | 6 | 1.66 | 184 | 2950 | 8 | 11 | 38 | 65 | 136 | |
| 9 | 6 | 1.66 | 207 | 2950 | 9 | 15 | 38 | 65 | 136 | |
