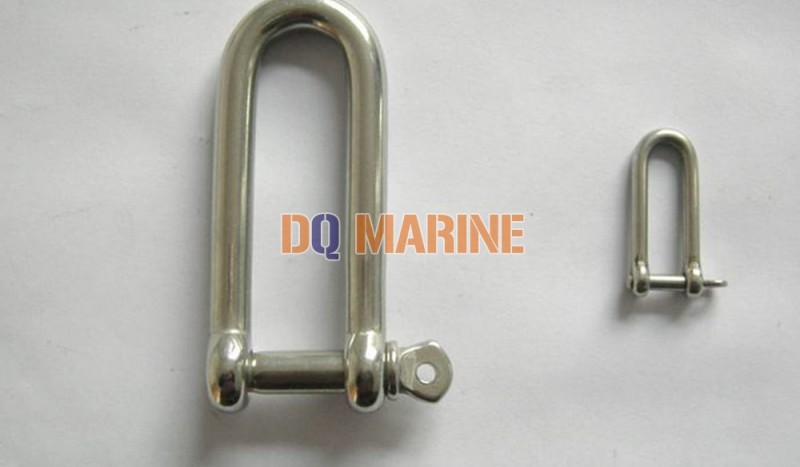

Stainless Steel Long Dee Shackle
Stainless Steel Long Dee Shackle Introduction
The material: AISI304/AISI316
Inside width is same the normal one, the inside height become longer.
The Product Detail
| Size (M) | C | H | W | D | BL | WT |
| mm | mm | mm | mm | mm | KG | KG |
| M4 | 4 | 30 | 8 | 8 | 500 | 0.01 |
| M5 | 5 | 37 | 10 | 10 | 800 | 0.018 |
| M6 | 6 | 45 | 12 | 12 | 1100 | 0.025 |
| M8 | 8 | 60 | 16 | 16 | 2000 | 0.095 |
| M10 | 10 | 75 | 20 | 20 | 3200 | 0.18 |
| M12 | 12 | 90 | 24 | 24 | 4400 | 0.27 |
| M14 | 14 | 105 | 28 | 28 | 5600 | 0.38 |
| M16 | 16 | 120 | 32 | 32 | 8000 | 0.64 |
