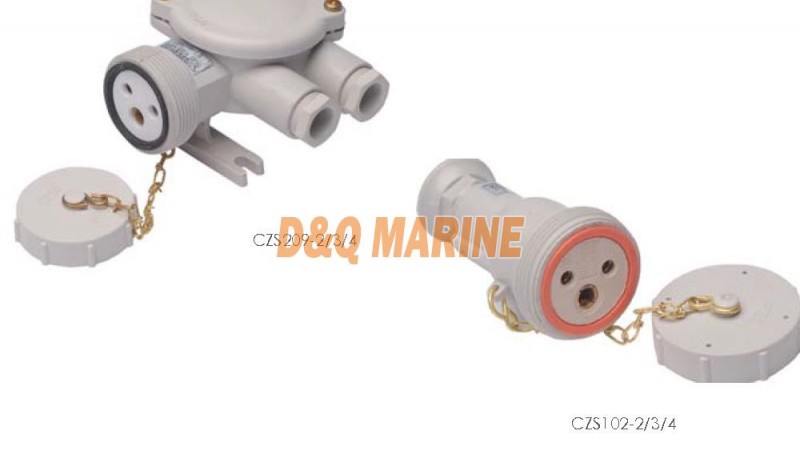

CZS 10A Marine Nylon Sockets
Products feature and Products certification
1. Products protection class: IP56.
2.Cable outside diameter is Φ12mm.
3. Products approved by CE (European Conformity) and CCS (China Classification Society).
Adopt Standard
DIN89262
Installation
CZS 10A Marine Nylon Sockets Specification
| Voltage(V) | 24 | 125 | 250 | 380/44 | 380/440 |
| Code | 1145/FS | ||||
| Type | CZS102-1 | CZS102-2 | CZS102-3 | CZS102-4 | CZS102-5 |
| Weight(Kg) | 0.14 | ||||
| Code | 1141/FS | ||||
| Type | CZS101-1 | CZS101-2 | CZS101-3 | CZS101-4 | CZS101-5 |
| Weight(Kg) | 0.36 | ||||
| Code | 1141/R/FS | ||||
| Type | CZS109-1 | CZS109-2 | CZS109-3 | CZS109-4 | CZS109-5 |
| Weight(Kg) | 0.36 | ||||
| Code | 1141/D/FS | ||||
| Type | CZS201-1 | CZS201-2 | CZS201-3 | CZS201-4 | CZS201-5 |
| Weight(Kg) | 0.38 | ||||
| Code | 1141/2/FS | ||||
| Type | CZS202-1 | CZS202-2 | CZS202-3 | CZS202-4 | CZS202-5 |
| Weight(Kg) | 0.38 | ||||
| Code | 1141/2/R/FS | ||||
| Type | CZS209-1 | CZS209-2 | CZS209-3 | CZS209-4 | CZS209-5 |
| Weight(Kg) | 0.38 | ||||
