OGM-A Series Oval Gear Meter
China OGM-A Series Oval Gear Meter:
OGM-A series aluminumoval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levelsof repeatabilityand durability,applying in thepetroleum,chemical,food industry,etc.Compact size ,easymaintenance
Easyto raed and operate mechanical display and LCD display.
Horizontally andverticallyflexibilityof installationoptions.
Lowpressure Drop.
Widelyused in induestries of petroleum.chemical processing,medicine,transportation,food,etc.
Drawing:
Specification:
| Model | OGM-A-20 | OGM-A-25 | OGM-A-40 | OGM-A-50 |
| Size | ¾" | 1" | 1½" | 2" |
| Flow Range | 10~80L/min | 20~200L/min | 25~250L/min | 30~300L/min |
| Accuracy | ±0.5% | |||
| Repeatability | ≤0.17% | |||
| Max.Viscosity | 1000CPS | |||
| Max.Pressure | 34Bar | 34Bar | 18Bar | 18Bar |
| Package | 35*35*23cm | 35*35*23cm | 40*23*41cm | 49*28*25cm |
| Net Weight | 16kg | 8kg | 14kg | 13kg |
| Gross Weight | 17kg | 9kg | 15kg | 14kg |
| Dimension | 4pcs/Carton | 2PCS/CTN | ||

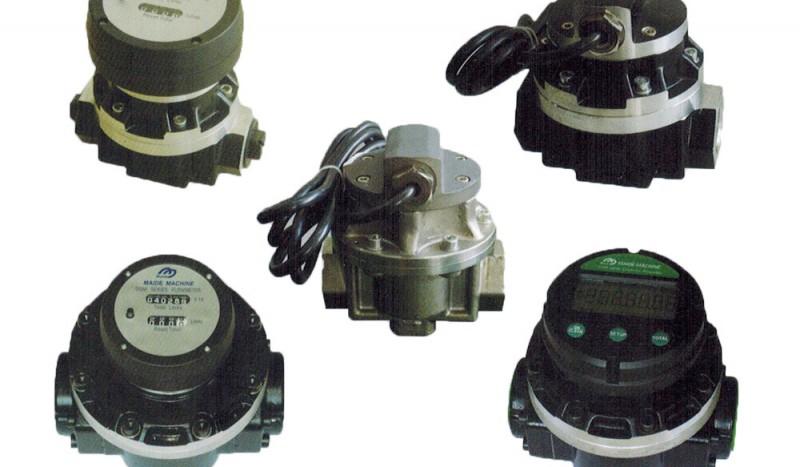

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
