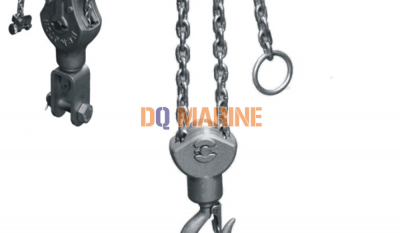

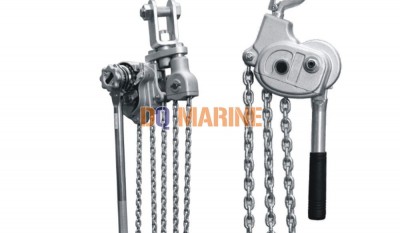

RICKY Series Lever Hoist
RICKY Series Lever Hoist Introduction
The body is made of high strength aluminum alloy.
High strength G100 alloy steel load chain.
According to the human mechanics handle design, easy to operate.
Light weight, small size, easy to maintain, hand force is one third than normal lever hoist, the weight is one half of others.
Product Details
The sizes table
| Model | Rated Load（KN) | Test Load（KN) | Dia of Chain(mm) | Shrinkage Length（mm) | Telescopic Length（mm) | Stroke（mm) | Handle Length（mm) | Dead Weight（Kg) | Extra Weight Per Meter (Kg) |
| RICKY-2 | 7. 5 | 11. 3 | 5 | 300 | 1800 | 1500 | 235 | 4. 4 | 0. 55 |
| RICKY-3 | 15 | 22. 5 | 5 | 350 | 1850 | 1500 | 235 | 5. 5 | 1. 1 |
| RICKY-30 | 30 | 45 | 5 | 350 | 1850 | 1500 | 425 | 8. 5 | 1. 1 |
| P-6000 | 60 | 90 | 5 | 650 | 2150 | 1500 | 425 | 17. 5 | 2. 2 |
