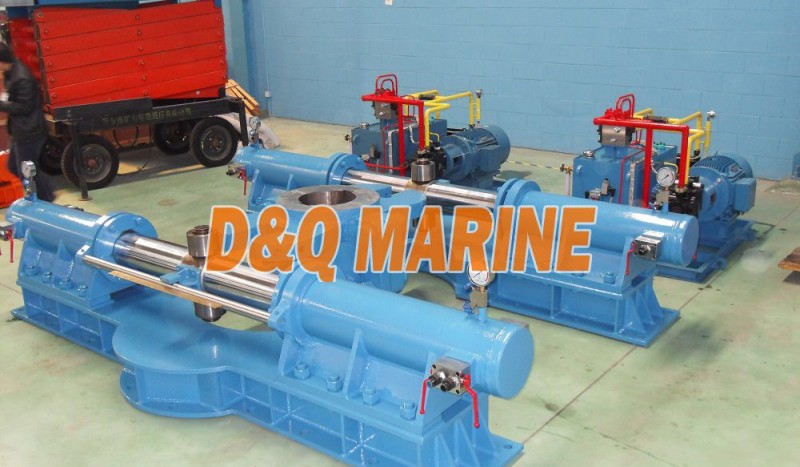

Ram type steering gear system (four cylinder with twin piston):

Ram type steering gear system (four cylinder with twin piston)

The reciprocating and ram type electro-hydraulic steering gear series consists of two sets of reciprocating and ram type rudder mechanism, two sets of motor kinetic tank for oil pump, one reserve tank.

Control mode, including electronic control, pump control, can be used together with any form of autopilot or follow-up pilot.

To meet cunstomer's requirement, two sets of rudder mechanism, can be used together or separately. One of which fails to work, can be used separated to ensure normal work of steering control.
It is widely used for ships with high safety performance such as large ship, oil tanker, liquefi ed-gas carrier, chemical tanker,more than 10000 ton tanker, chemical and liquefied gas ship and etc.

Technical parameter
