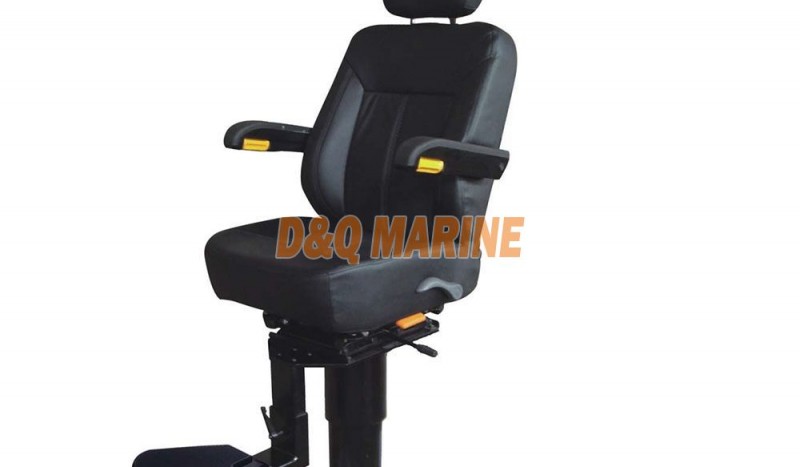

Steel Fixed Pilot Chair TR-001 with Round Column:

China Steel Fixed Pilot Chair TR-001 with Round Column:

Fixed Pilot Chair TR-001 is made of round steel column.

Features:

1.Ergonomic design;

2.Adjustable backrest and headrest;

3.Seat height may be angle adjusted;

4.Seats can be moved back and forth;

5.Folding / angle-adjustable comfortable seat armrest;

6.Seat can rotated 360 degrees, multi-point positioning;

7.Foot rest height adjustable / folding;

8.Column can be vertically lifted and descended;

Material:

1.lifting column is made of steel & stainless steel;

2.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;

3.The function components of seat lifting and tilting, moving back and forth, back angle adjusting are in steel structure;

4. The seat back and the seat cushion are the synthesis of the steel inner core and PU cold foam forming disposable sponge, outsourced by leather, PU or fabric.

5. Pedal plate is with steel inner core and rubber.

6. pneumatic rod of pneumatic lifting core components is Stabilus imported from Germany.

Function Data:

1.Upper part of the seat can be moved back and forth of 120mm,height adjustment 60mm, seat inclination angle range of ±12°;

2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;

3. The seat pneumatic lifting regulating range 0-150mm；

4.The seat can rotate 360° and locked ,4-point positioning control;

5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;

6.Seat can bear more than 150FT.LB torsion, reaches AD grade standard;
