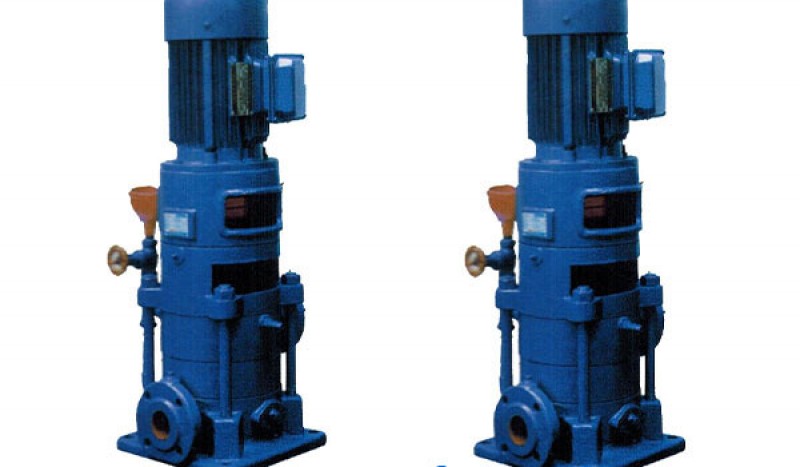

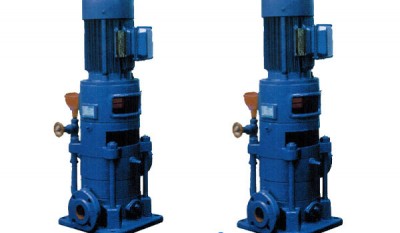

LG Series High-rise Feed Pump
China LG Series High-rise Feed Pump:
LG series pumps are vertical single-suction multistage segmental centrifugal pumps for conveying clear water at room temperature and liquids similar to clear water in physical and chemical properties.
LG series pump is vertical installation, motor shaft connected with pump shaft through claw coupling, with compact structure, low noise, small footprint, mainly used for water supply in high-rise buildings, but also can be used in factories and mines, enterprise water supply and drainage and low-pressure boiler circulation water.
LG Series High-rise Feed Pump
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| 25LG3-10×2 | 3 | 20 | 2900 | 0.75 |
| 25LG3-10×3 | 3 | 30 | 2900 | 1.1 |
| 25LG3-10×4 | 3 | 40 | 2900 | 1.5 |
| 25LG3-10×5 | 3 | 50 | 2900 | 1.5 |
| 25LG3-10×6 | 3 | 60 | 2900 | 2.2 |
| 25LG3-10×7 | 3 | 70 | 2900 | 2.2 |
| 25LG3-10×8 | 3 | 80 | 2900 | 2.2 |
| 25LG3-10×9 | 3 | 90 | 2900 | 2.2 |
| 25LG3-10×10 | 3 | 100 | 2900 | 3 |
| 25LG3-10×11 | 3 | 110 | 2900 | 3 |
| 25LG3-10×12 | 3 | 120 | 2900 | 4 |
| 25LG3-10×13 | 3 | 130 | 2900 | 4 |
| 25LG3-10×14 | 3 | 140 | 2900 | 4 |
| 25LG3-10×15 | 3 | 150 | 2900 | 4 |
| 32LG6.5-15×2 | 6.5 | 30 | 2900 | 1.5 |
| 32LG6.5-15×3 | 6.5 | 45 | 2900 | 2.2 |
| 32LG6.5-15×4 | 6.5 | 60 | 2900 | 3 |
| 32LG6.5-15×5 | 6.5 | 75 | 2900 | 4 |
| 32LG6.5-15×6 | 6.5 | 90 | 2900 | 4 |
| 32LG6.5-15×7 | 6.5 | 105 | 2900 | 5.5 |
| 32LG6.5-15×8 | 6.5 | 120 | 2900 | 5.5 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
