DYB Electric Transfer Pump
China DYB Electric Transfer Pump:
For Fueling diesel,Kerosene,not for gasolineMechanical seal that guarantees constant reliability,even in low temperatures.
Cast-iron pump casing,treated against corresion and paint-finished.
Vane pump with steel rotor
Bypass valve built in.
In- built 100-micron filter,easily accessible for cleaning.
Induction motor with aluminium casing.
Grade of protection:IP54.
Continuous runing.
Specification：
| Model | DYB60-AC220/110 | DYB80-AC220/110 | DYB40-DC12/DC24 |
| Flow Rate | 20L-60L/min | 20L-80L/min | 20L-40L/min |
| Max.Pressure | 3Bar | 3Bar | 3Bar |
| Power | AC220V±10% 50Hz AC 110V±10& 50Hz | AC110V±10% 50Hz AC220V±10% 50Hz | DC12 DC24 |
| By pass Valve | Yes | Yes | Yes |
| Strainer | Yes | Yes | NO. |
| Inlet&Outlet | 1" | 1" | ¾" |
| Power | 375W | 550W | 120W |
| Dimension | 50*30*25cm | 29*23*26cm | 43*25*24cm |
| Net Weight | 15kg | 12kg | 7kg |
| Gross Weight | 16kg | 13kg | 8kg |
| Package | 2pcs/carton | ||

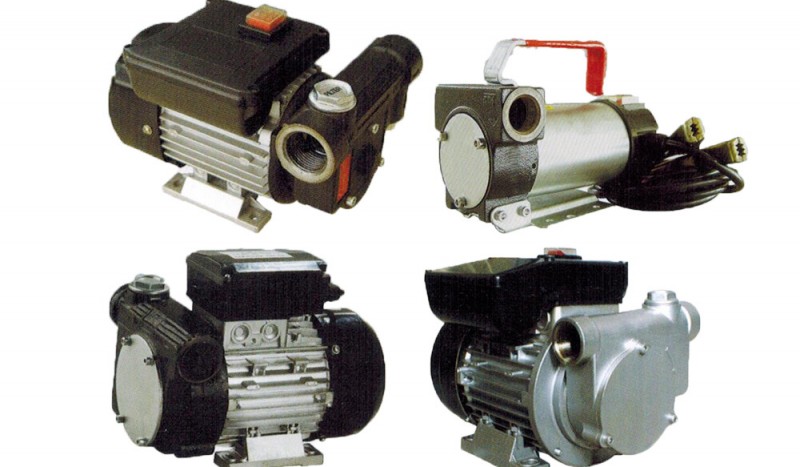

Picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
