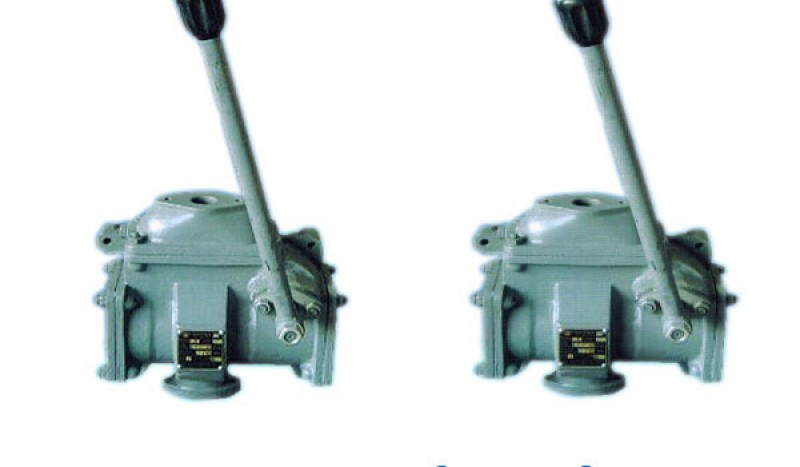

CS Series Hand Pump
China CS Series Hand Pump:
CS series pump and Ⅰ,Ⅲ hand pump are had operated piston pumps and operate through two action of single jar. It can be used to deliver lube oil,fuel oil,other lubricant oil,fresh water and sea water that do not exceed 60℃ in temperature and do not have hard particles or fibre. It is used widely of marine, industry, oil depot and transport service etc, It can also be regarded as oil-supplying pump for diesel generating unit.
External installation dimension
Main Technical Data
| Model |
Flow rate Q（m³/h） |
Reciprocating Rate (order/min) |
Hand effort (N) |
Weight (kg) |
| CS-15Y.H | 0.6 | 50 | 100 | 3.5 |
| CS-20Y.H | 1.2 | 50 | 180 | 5 |
| CS-25Y.H | 1.92 | 50 | 230 | 7.5 |
| CS-32Y.H | 2.88 | 50 | 280 | 9.5 |
| CS-40Y.H | 3.9 | 50 | 380 | 11 |
| Ⅰ | 1.2 | 80 | － | 15.5 |
| Ⅲ | 3.9 | 50 | － | 38.2 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
