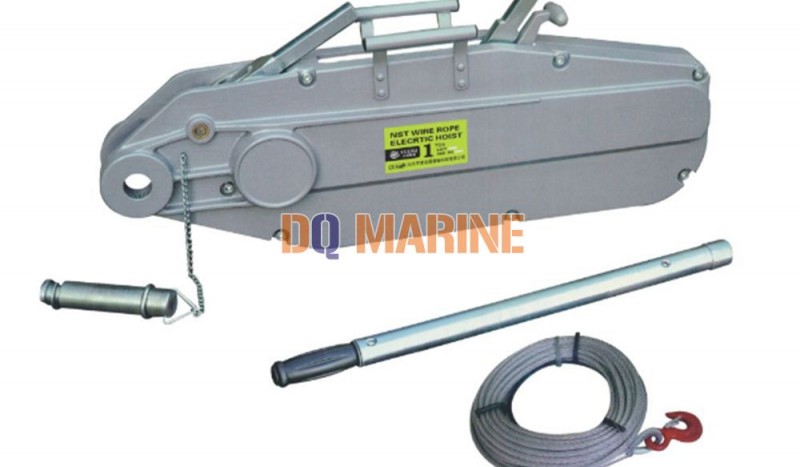

NST Steel Wire Rope Hoist
Category:
Chain Block
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NST Steel Wire Rope Hoist:
NST Steel Wire Rope Hoist Introduction

Light weight, impact structure, widely used and easy to maintain.

Shell cover is made of aluminum alloy steel, light weight, and portable.

Working length of the wire rope can reach 20m or 30m, also as your request.

Reasonable lever connecting system, the traction force will be small and the wear of the wire rope will be small as well. High reliability of the machine.

Can pull goods from different direction and angle, also can do nonlinear traction to get the best operation position, and extend the load.

Product Details

The sizes table

Model NST6180.8 NST-6181.0 NST-6181.6 NST-6183.2
Rated Load(T) 0.8 1 1.6 3.2
Rated Forward Travel(mm) >52 >52 >55 >28
Efficient Length of Forward Handle(mm) 825 825 1200 1200
Drive Grade 1 1 1 2
Dia of Wire Rope(mm) 8 8 11 16
Length of Wire Rope(mm) 10;20 10;20 10;20 10
Net Weight(KG) 6 6 12 12
Rated Forward Hand Force(N) <284 <353 <412 <441
Package Size(mm) 428x64x235 428x64x235 545x97x28 660x116x35
