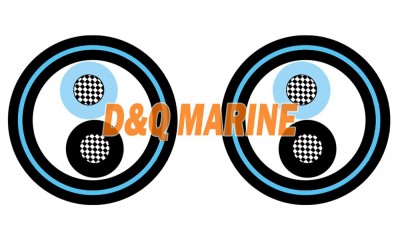

NEK606 Instrumentation Cables P16 IFLI 250V
Category:
NEK 606 Offshore & Marine Cables
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NEK606 Instrumentation Cables P16 IFLI 250V:
Applications

P16 IFLI 250 V Marine Cable are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards

IEC 60092-376

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

Construction
  • Conductors : Circular stranded copper wire to IEC 60228 class 2.
  • Insulation : XLPE
  • Bedding : Halogen free thermoplastic compound.
  • Metal Screen : Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.
  • Outer Sheath : Halogen free thermoplastic compound, SHF1, coloured grey.
Technical data
Nominal Cross Section Area mm² 2.5
Maximum Resistant@20℃ Ω/km 7.41
Continuous Current Rating@45℃2 Core A 26
Short Circuit Current 1s A 360
Operating Voltage V 250

Mechanical and Thermal Properties
  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.
