Marine Cable-RG59 Armoured Coaxial Cable
Applications
RG59 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.
Standards
|
IEC 60092-350 |
IEC 60332-3-22 |
|
IEC 60754-1,2 |
IEC 61034-1,2 |
|
NEK 606:2004 |

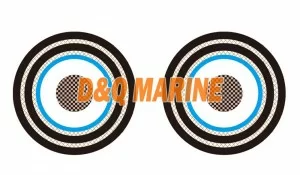

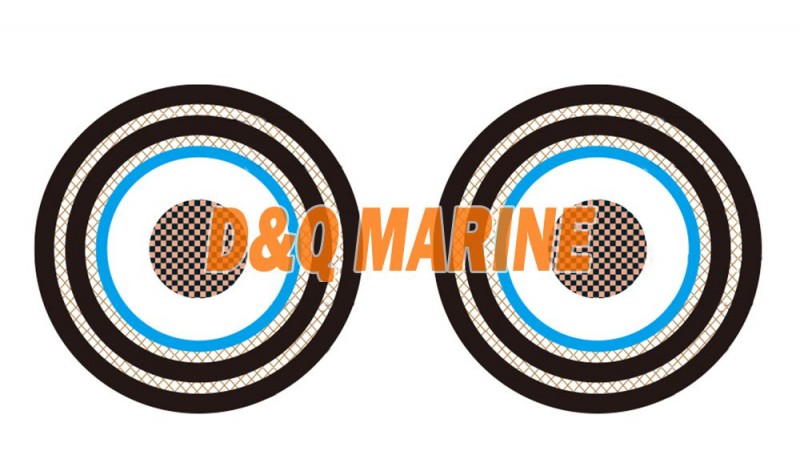

Construction :
- Conductors : 20AWG solid bare copper.
- Insulation : Foam PE.
- Shielding1 : Al/Polyester/Al tape.
- Shielding2 : Tinned copper braid.
- Bedding : Low smoke and halogen-free polyolefin, coloured black.
- Armour : Copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
Technical Data
| AWG | 20 | |
| Nominal Conductor Diameter | mm | 0.8 |
| Impedance | Ω | 75+/-5 |
| Nominal Attenuation@100MHz | dB/100m | 7.6 |
| Nominal Attenuation@270MHz | dB/100m | 12.5 |
| Nominal Attenuation@540MHz | dB/100m | 17.9 |
| Nominal Attenuation@720MHz | dB/100m | 20.9 |
| Nominal Attenuation@750MHz | dB/100m | 21.3 |
| Nominal Attenuation@1000MHz | dB/100m | 24.9 |
| Capacitance | pF/m | 53.5 |
| Velocity of Propagation | % | 83 |
| Conductor DCR | Ω/km | 32.8 |
| Shield DCR | Ω/km | 12.5 |
| Inductance | μH/m | 0.318 |
| Time Delay | ns/m | 4 |
Mechanical and Thermal Properties
- Bending Radius : 15×OD.
- Temperature Range : -30℃ ~ +75℃.
Dimensions and Weight
|
Nominal Inner Conductor Diameter mm |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
0.8 |
1.4 |
1.2 |
10.0 |
177 |
