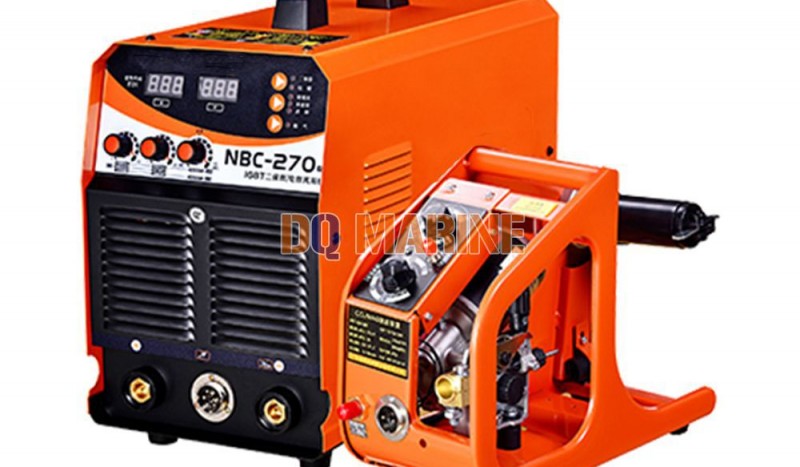

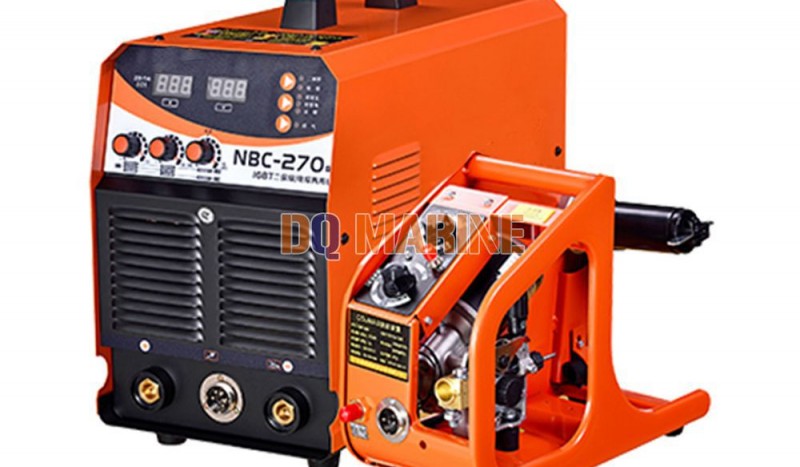

NBC-270F 270F2 Inverter Gas Shielded Welding Machine
Category:
Welding And Cutting Equipment
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NBC-270F 270F2 Inverter Gas Shielded Welding Machine:
NBC-270F 270F2 Inverter Gas Shielded Welding Machine Introduction

Exclusive appearance design, stable arc transition, less spatter, good formation and quality welding seam.

Continuously adjustable current and voltage, meet different welding process situations.

Adopt digital control inverter technology and imported IGBT, advance circuit design, high reliability.

Mainly used for many different welding positions of carbon steel, low-alloy steel, stainless steel and other ferrous metal.

The current less than 270A is suitable for sheet plate.

Fast switch for carbon dioxide welding and arc welding, one machine with two modes.

Technical Parameters

TYPE NBC-270F NBC-270FⅡ
Power Voltage (V) AC 220V ± 15% AC 220V ± 15%
Frequency (HZ) 50/60 50/60
Rated Input Power (KVA) 8.9 10.4
Scope Output Current Adjustment (A) 50-240 50-270
Scope Output Voltage Adjustment (V) 16.5-26 16.5-27.5
Duty Cycle (%) 60 60
No-Load loss (W) 80 80
Wire Feed Type split-type split-type
Welding Rod Diameter(mm) 0.8-1.0 0.8-1.0
Enclose Protection Level IP21 IP21
Insulation Level F F
Plate Thickness (mm) ≥0.8 ≥0.8
Weight (kg) 18.3 18.5
Overall Size(mm) 503x243x540 503x243x540
