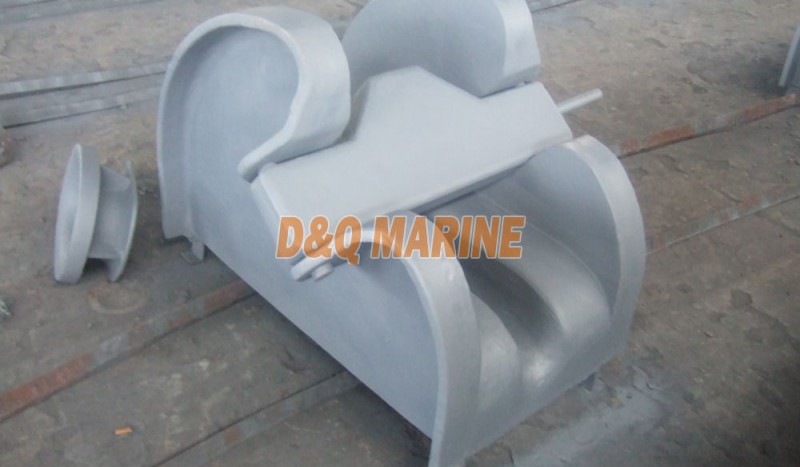

JISF2015 Cast Steel Chain Stopper:
JISF2015 Cast Steel Chain Stopper
Description:
Chain stopper can make the pull strength of anchor and chain transfer to vessel, effectively reduce the working load to protect the anchor windlass.
Cast steel ,cast iron material available.
Drawing:
Size Chart:
| Chain | Dimensions(mm) | ||||||
| Dia.(mm) | B | H | H2 | L | h | B2 | Weight(KG) |
| 38-40 | 336 | 378 | 130 | 540 | 68 | 65 | 110 |
| 42-44 | 366 | 412 | 142 | 590 | 75 | 72 | 138 |
| 46-48 | 397 | 450 | 155 | 640 | 82 | 78 | 177 |
| 50-52 | 428 | 491 | 170 | 695 | 88 | 85 | 214 |
| 54-56 | 457 | 528 | 182 | 745 | 95 | 92 | 261 |
| 58-60 | 488 | 465 | 195 | 795 | 102 | 98 | 319 |
| 62-64 | 517 | 600 | 208 | 850 | 109 | 104 | 396 |
| 66-68 | 547 | 635 | 220 | 900 | 116 | 110 | 428 |
| 70-73 | 582 | 675 | 233 | 960 | 125 | 117 | 609 |
| 76-78 | 617 | 715 | 245 | 1020 | 133 | 123 | 740 |
| Size 62mm to 78mm counter-weight shall be equipped. | |||||||
| The bar can be opened in right or left hand side. | |||||||
