NEK606 Marine Coaxial Cables Mud Resistant Composite Cable

NEK606 Marine Coaxial Cables Mud Resistant Composite Cable

Marine Cable

NEK606 Marine Coaxial Cables Mud Resistant Composite Cable

Applications

These composite cables consist of cat6 data cable & coaxial cable & power cable, with copper wire braid armoured & flame retardant oil&mud resistant outer sheath.
Standards
IEC 60092-359 IEC 60332-3-22
IEC 60754-1,2 IEC 61034-1,2

NEK 606:2004

Construction :

1) 4×2×0.57mm U/UTP Cat6 Data Cable:
Conductors : Solid bare copper wire.
Insulation : PE.
Twinning : Two coloured insulated wire twisted to form a pair.
Sheath : Flame retardant LSZH, coloured grey.
2) RG59 Coaxial Cable:
Conductors : 0.58mm solid bare copper wire.
Insulation : PE.
Shielding : Bare copper wire braid.
Sheath : Flame retardant LSZH, coloured grey.
3) 3×1.0mm Power Cable :
Conductors : 7/0.44mm stranded bare copper wire.
Insulation : XLPE. Coloured Blue, Brown, Green/Yellow.
Sheath : Flame retardant LSZH, coloured grey

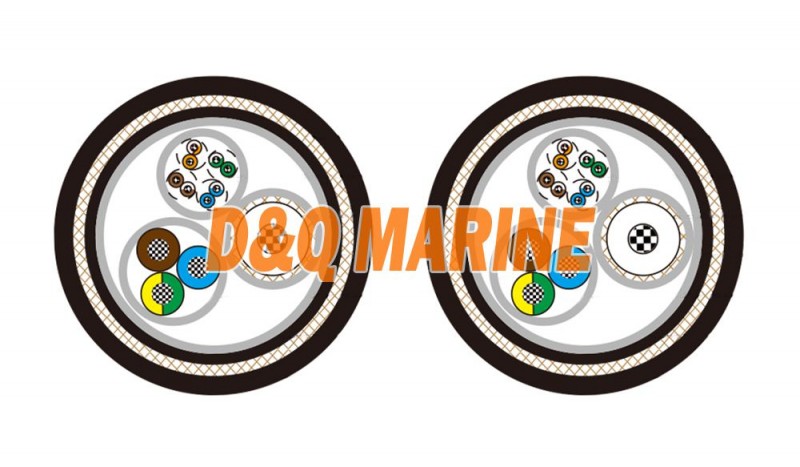

4) Element Assembly :
Bedding : Flame retardant LSZH.
Armour : Tinned copper wire braid.
Outer Sheath : Oil & mud resistant, flame retardant LSZH, coloured grey.
Filler : PP, PVC, PE or LSZH Material.
Wrapping : Polyester Tape.
