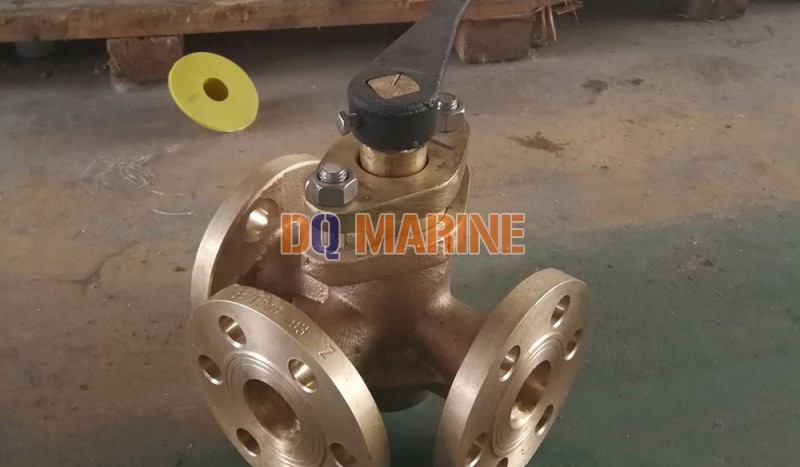

Marine Bronze Flanged 3 Way Valve
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Bronze Flanged 3 Way Valve:
China Marine Bronze Flanged 3 Way Valve:

Marine Bronze Flanged 3 Way Valve is Type L/LS, T/TS of marine flanged packed cocks.

Technical Specification:

Design Standard: GB/T593-93, CBM1080-81

Type A/AS---Two way cock

Type L/LS, T/TS---Three way cock

Test Standard:GB600

Flange size as per GB569 or GB2501

Nominal Pressure (Mpa) Nominal Diameter (mm) Applicable Medium
0.6 20~80 sea water, fresh water,lubrication oil, fuel oil
Main Material:

Body-Bronze (ZCuSn10Zn2 or ZCuSn5Pb5Zn5)

Bonnet-Bronze (ZCuSn10Zn2 or ZCuSn5Pb5Zn5)

Main Size List(mm):

Type A, L, T:

DN (mm) Structure Dimension Thickness δ Flange Bolt handle L0 Weight(kg)
L H≈ H1 D D1 D2 d0 b n Th Type A Type L Type T
20 145 139 40 4 95 68 48 13 12 4 M12 125 3.0 3.5 3.4
25 155 149 41 4 105 73 56 13 13 4 M12 140 3.7 4.2 4.1
32 165 168 48 5 115 83 64 15 13 6 M14 160 4.6 5.3 5.2
40 190 192 56 5 125 93 74 15 14 6 M14 180 6.9 8.6 8.5
50 205 243 65 5 135 103 84 15 14 6 M14 230 9.7 11.4 11.3
65 225 285 80 6 155 123 104 15 14 6 M14 250 12.4 15.6 15.4
80 245 324 96 6 170 138 118 15 14 6 M14 320 18.8 21.6 21.2

Type AS,LS,TS:

DN (mm) Structure Dimension Thickness δ Flange Bolt handle L0 Weight(kg)
L H≈ H1 D D1 D2 d0 b n Th Type AS Type LS Type TS
20 150 139 40 4 90 65 50 11 12 4 M10 125 3.0 3.5 3.4
25 160 149 41 4 100 75 60 11 14 4 M10 140 3.7 4.2 4.1
32 180 168 48 5 120 90 70 14 15 4 M12 160 5.0 5.9 5.8
40 200 192 56 5 130 100 80 14 16 4 M12 180 7.5 9.4 9.3
50 230 243 65 5 140 110 90 14 17 4 M12 230 10.7 12.6 12.5
65 290 285 80 6 160 130 110 14 17 4 M12 250 13.6 17.1 16.9
80 310 324 96 6 190 150 128 18 19 4 M16 320 20.3 23.6 23.3

Send us your inquiry now

we would revert with you within 24 hours.

We'll never share your email with anyone else.
Please send the specification, quantity, class certificate or other information.
