Marine Cable-RG6 Armoured Coaxial Cable
Applications
RG6 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.
Standards
|
IEC 60092-350 |
IEC 60332-3-22 |
|
IEC 60754-1,2 |
IEC 61034-1,2 |
|
NEK 606:2004 |

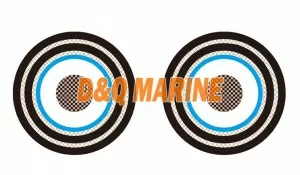

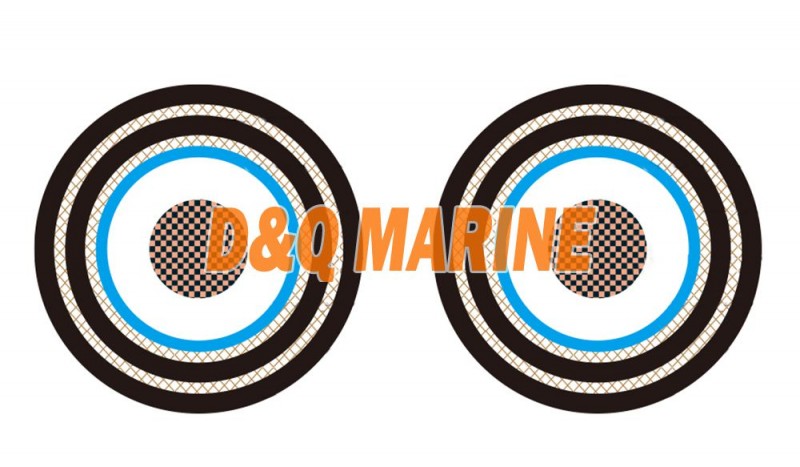

Construction
- Conductors : 18AWG solid bare copper.
- Insulation : Foam PE.
- Shielding1 : Al/Polyester/Al tape.
- Shielding2 : Tinned copper braid.
- Bedding : Low smoke and halogen-free polyolefin, coloured black.
- Armour : Copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
Technical Data
| AWG | 18 | |
| Nominal Conductor Diameter | mm | 1 |
| Impedance | Ω | 75+/-5 |
| Nominal Attenuation@100MHz | dB/100m | 6.9 |
| Nominal Attenuation@200MHz | dB/100m | 9 |
| Nominal Attenuation@300MHz | dB/100m | 11.8 |
| Nominal Attenuation@400MHz | dB/100m | 13.1 |
| Nominal Attenuation@500MHz | dB/100m | 15.4 |
| Nominal Attenuation@900MHz | dB/100m | 21.5 |
| Nominal Attenuation@1700MHz | dB/100m | 29.4 |
| Capacitance | pF/m | 53.5 |
| Velocity of Propagation | % | 83 |
| Conductor DCR | Ω/km | 21.4 |
| Shield DCR | Ω/km | 7.5 |
| Inductance | μH/m | 0.32 |
| Time Delay | ns/m | 4 |
Mechanical and Thermal Properties
- Bending Radius : 15×OD.
- Temperature Range : -30℃ ~ +75℃.
Dimensions and Weight
|
Nominal Inner Conductor Diameter mm |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
1.0 |
1.8 |
1.2 |
11.2 |
208 |
