WFB Series Marine Non-seal Self-control Self-suction Pump:
China WFB Series Marine Non-seal Self-control Self-suction Pump:
WFB series self - priming pump without seal adopts multi - side centrifugal sealing device without worry of running, running, dripping and leaking.Because there is no friction and wear in the process of operation, the service life of the product is several times longer than similar products.The pump has many functions, such as temperature resistance, pressure resistance, wear-resisting, "primary drainage, lifelong self-suction", etc. The self-suction performance is reliable, especially the use of electric air control valve has the characteristics of reliable operation, easy to remove, easy to install and so on.

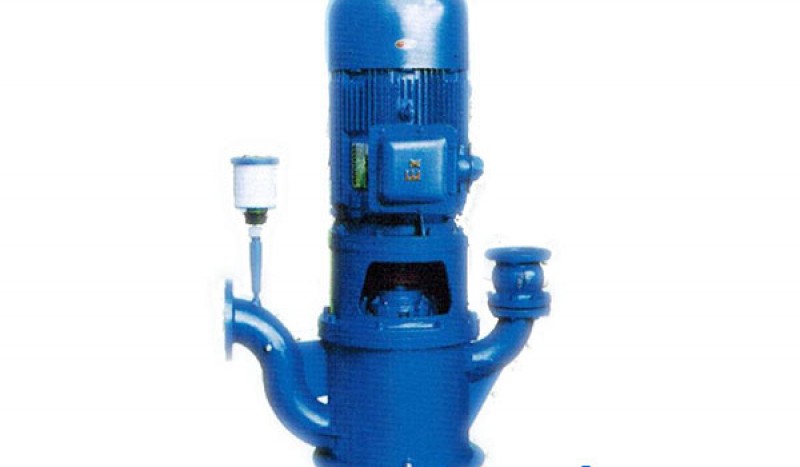

WFB Series Marine Non-seal Self-control Self-suction Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 16WFB-A | 1.1 | 6.5 | 2900 | 0.75 |
| 25WFB-A | 3.6 | 25 | 2900 | 3 |
| 32WFB-A | 6.5 | 10.5 | 2900 | 1.5 |
| 40WFB-A | 8.5 | 23 | 2900 | 4 |
| 40WFB-A1 | 13.5 | 18 | 2900 | 3 |
| 40WFB-A2 | 8 | 13 | 2900 | 2.2 |
| 40WFB-A3 | 14 | 8 | 2900 | 2.2 |
| 50WFB-A | 12.5 | 26 | 2900 | 5.5 |
| 50WFB-A1 | 10.5 | 20.5 | 2900 | 3 |
| 50WFB-AD | 6.3 | 10 | 2900 | 1.5 |
| 50WFB-AD1 | 10 | 6 | 2900 | 1.5 |
| 50WFB-B | 11 | 38 | 2900 | 11 |
| 50WFB-B1 | 12 | 31 | 2900 | 7.5 |
| 50WFB-B2 | 10 | 26.5 | 2900 | 4 |
| 50WFB-B3 | 6.4/10.6/12.8 | 14 | 2900 | 2.2 |
| 50WFB-C | 12 | 56 | 2900 | 15 |
| 50WFB-C1 | 10 | 46 | 2900 | 7.5 |
| 50WFB-CD | 12 | 40 | 2900 | 7.5 |
| 50WFB-E | 6 | 18 | 2900 | . |
| 50WFB-E1 | 12 | 80 | 2900 | 18.5 |
| 50WFB-E2 | 12 | 62 | 2900 | 15 |
| Also have bigger pumps, pls contact us for more information. | ||||
