Marine Offshore Cat6 UTP/FTP Armoured Data Cable
Applications
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Standards
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

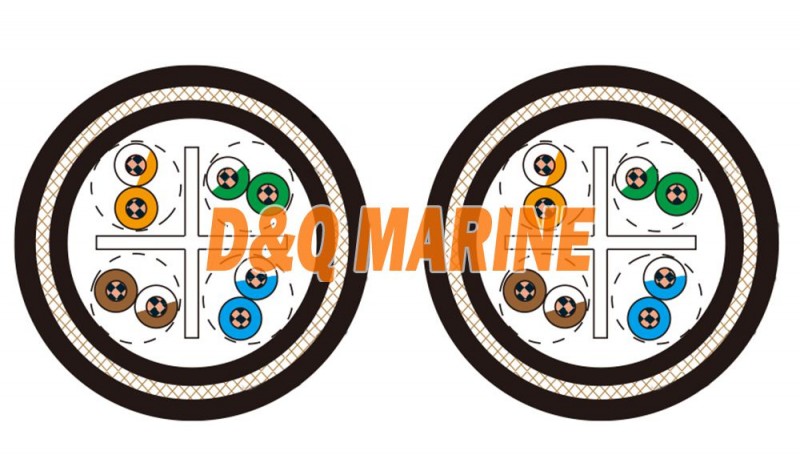

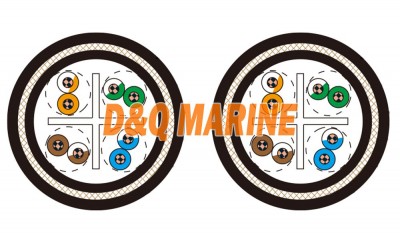

Construction :
- Conductors : 23AWG solid bare copper.
- Insulation : HDPE.
- Twinning : Two coloured insulated conductors twisted together to form a pair.
- Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
- Armour : 0.2/0.3mm copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
Technical Data
| AWG | 24 | |
| Nominal Conductor Diameter | mm | 0.58 |
| Maximum DC Resistant@20℃ | Ω/100m | 9.38 |
| Maximum DCR Unbalance | % | 3 |
| Maximum Mutual Capacitance | pF/m | 5.8 |
| Maximum Capacitance Unbalance | pF/100m | 30 |
| Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
| Maximum Propagation Delay Skew | ns/100m | 18 |
Optional :
- Cat6 F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.
- Cat6 SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire.
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
