NEK606 Fire Resistant Instrumention Cables S15 BFOU-HCF(i) 250V
Category:
NEK 606 Offshore & Marine Cables
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NEK606 Fire Resistant Instrumention Cables S15 BFOU-HCF(i) 250V:
China NEK606 Fire Resistant Instrumention Cables S15 BFOU-HCF(i) 250V:

S15 BFOU-HCF(i) 250 V Marine Cable

Applications

These cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100℃ hydrocarbon fire.

Standards

IEC 60092-376

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

IEC 60331-21

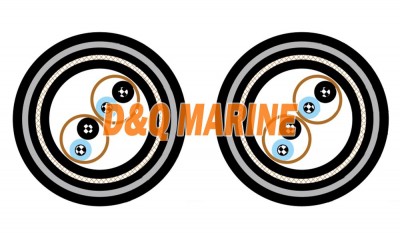

Construction
  • Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  • Insulation : Mica tape + Halogen free EPR compound.
  • Twinning : Colour coded cores twisted together.
  • Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath1 : Halogen free thermosetting compound, SHF2.
  • HC-fire protection : Extruded thermoplastic fire protection compound.
  • Taping : Lapped glass fibre tape.
  • Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe).
Technical data
Nominal Cross Section Area mm² 1.5
Nominal Conductor Diameter mm 1.6
Maximum Resistant@20℃ Ω/km 12.9
Mutual Capacitance nF/km 100
Nominal Inductance@1KHz MH/km 0.673
Operating Voltage V 250
Mechanical and Thermal Properties
  • Bending Radius : 20×OD (during installation); 12×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.
