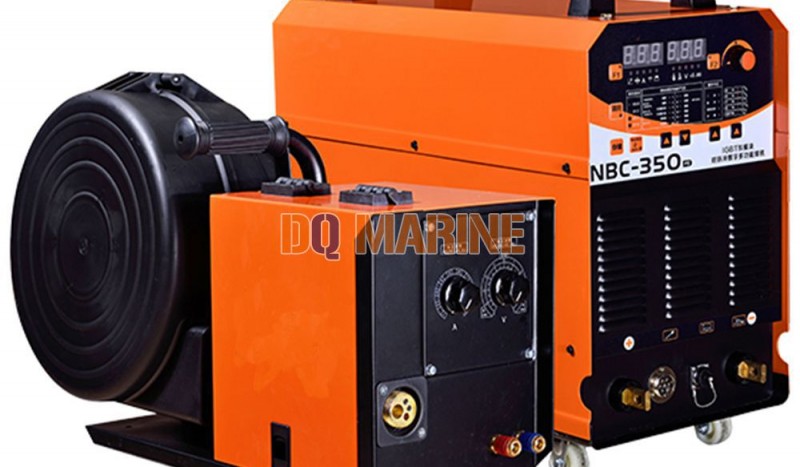

NBC-350P2 500P2 Inverter Gas Shielded Welding Machine
NBC-350P2 500P2 Inverter Gas Shielded Welding Machine Introduction
Full bridge IGBT technology with soft switch, current controlled, reliable quality and stable performance.
Digital expert system and special process optimized the welding quality.
Abundant inner menu and adjustable parameter meets the extreme demands.
Unified regulation, adjustable pulse frequency, auto-matched the current and voltage.
Abundant functions in one machine, suitable for all kinds of materials welding.
Especially for the aluminum magnesium alloys, aluminum-silicon alloys, copper, stainless steel, carbon steel.
Available for single pulse gas shielded welding, DC welding, arc welding and carbon arc air gouging.
Technical Parameters
| TYPE | NBC-350PⅡ | NBC-500PⅡ |
| Power Voltage (V) | AC 380V ± 15% | AC 380V ± 15% |
| Frequency (HZ) | 50/60 | 50/60 |
| Rated Input Power (KVA) | 14.9 | 25 |
| Scope Output Current Adjustment (A) | 50-350 | 80-500 |
| Scope Output Voltage Adjustment (V) | 16.5-31.5 | 18-39 |
| Duty Cycle (%) | 60 | 60 |
| No-Load loss (W) | 80 | 80 |
| Welding Wire Diameter(mm) | 0.8/1.0/1.2 | 0.8/1.2/1.6 |
| Welding Rod Diameter(mm) | 1.6-5.0 | 2.5-6.0 |
| Weight (kg) | 41 | 48.4 |
| Overall Size(mm) | 635x323x615 | 635x323x615 |
