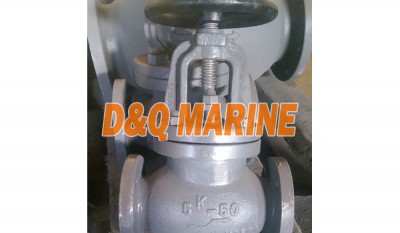

Marine Cast Steel 5K Globe Valve JIS F7311
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Cast Steel 5K Globe Valve JIS F7311:
China Marine Cast Steel 5K Globe Valve JIS F7311:

Marine Cast Steel 5K Globe Valve JIS F7311 is used for such the hull fitting suction or discharge valves, as cooling water of propulsion and auxiliary machinery, sea water of ballast etc. and other cargo oil pipelines in ships.

Technical Specification:

1. Design and manufacturing standard: JIS F7311-1996

2. Inspection and Test standard: JIS F7400

3. Hydraulic Pressure Test: Body---1.05Mpa, Seat---0.77Mpa

4. Connection Type: Flange

5. Flange Standard: JIS B2220 5K

6. Warranty: 12months

7. Function: shut off/turn on the medium, control the flow rate.

Max Working Pressure:

Fluid Condition Max Working Pressure (Mpa)
Oil and pulsation water 0.5
Non-shock water of 120℃ or less 0.7

Main Material:

Class B:

1.Body/Bonnet---Cast Iron

2. Seat---Bronze

3. Disc---Bronze

4. Stem---Brass

Class S:

1.Body/Bonnet---Cast Iron

2. Seat---Stainless Steel

3. Disc---Stainless Steel

4. Stem---Stainless Steel

Main Size(mm):

IMPA CODE Size L D C No of Bolt Hole h t H D2
50 210 130 105 4 15 16 270 160
65 250 155 130 4 15 18 300 180
80 280 180 145 4 19 18 310 180
100 340 200 165 8 19 20 360 224
125 410 235 200 8 19 20 390 250
150 480 265 230 8 19 22 445 280
200 570 320 280 8 23 24 530 315
750401 250 740 385 345 12 23 26 650 355
750402 300 840 430 390 12 23 28 740 400
350 840 480 435 12 25 30 840 500
400 1050 540 495 16 25 30 940 630
