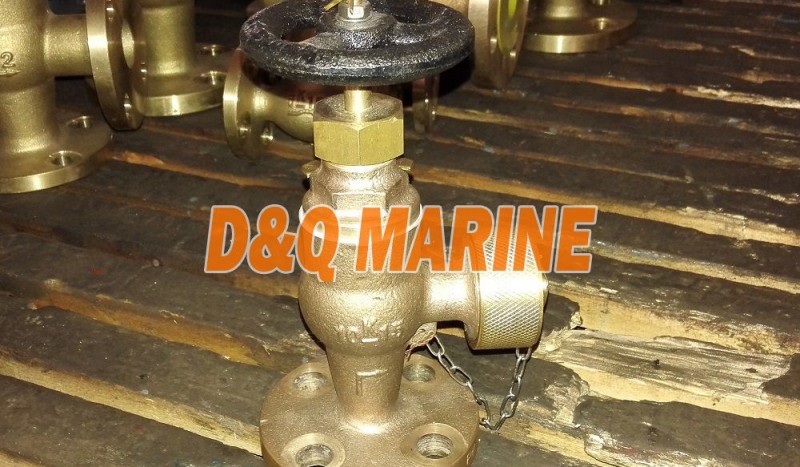

Marine Bronze/Brass Angle Hose Valve JIS F7334B 10K
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Bronze/Brass Angle Hose Valve JIS F7334B 10K:
China Marine Bronze/Brass Angle Hose Valve JIS F7334B 10K:

Marine Hose Valve is the fire hydrant used in the ship or vessel. It controls the opening/closing of fire fighting water, the fire hose and nozzle are connected with the hose valve to quench a fire.

If the nominal size is DN15,DN25, it is the screwed bonnet. If the nominal size is DN40,DN50, DN65, it is bolted bonnet.

Technical Specification:

1.Design & Manufacturing Standard: JIS F7334

2.Inspection & Test Standard: JIS F7400

3. Connection Type: Flange

4.Flange Standard: JIS B2220 10K

5.Hydraulic Pressure Test: Body-2.1Mpa, Seat-1.54Mpa

6. Max Working Pressure: 1.0Mpa for pulsation water, ari and steam of 205℃ or less, 1.4Mpa for non-shock water of 120℃ or less.

7. Warranty: 12months

8. Certificate: CCS, ABS, BV, DNV/GL, RINA, LR, NK, IRS, RMRS

Main Material:

1-Body: Bronze / Brass

2-Disc: Bronze / Brass

3-Stem: Brass

4-Coupling: Brass

Main Data for Joining(mm):

IMPA CODE DN L L1 D C No. h t H D2 D3
751707 15 73 70 95 70 4 15 12 129 80 M42x2
751709 25 83 85 125 90 4 19 14 161 125 M42x2
751714 40 124 100 140 105 4 19 16 193 140 M52x2
751722 50 160 120 155 120 4 19 16 271 160 M64x2
751723 65 180 130 175 140 4 19 18 298 200 M80x2
