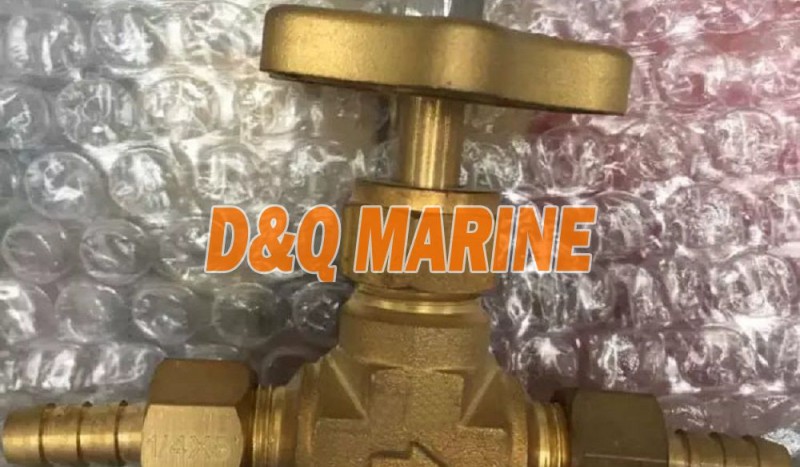

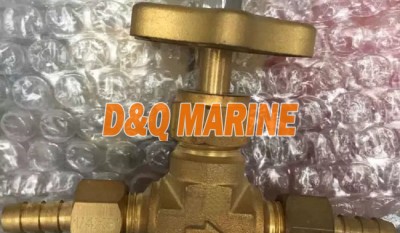

Brass Needle Valve with Corrugated Hose Ends
China Brass Needle Valve with Corrugated Hose Ends:
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 1.47Mpa (15kgf/cm2)
3. Recommended for use at less than 80% of max load pressure at temperature between 80℃ and 100℃.
Main Size:
| IMPA | Nominal Size | For Hose ID | Thread | Wheel Dia | Length | Height |
| 752136 | 8 x 1/4 | 8 | PF-1/4 | 35 | 95 | 37 |
| 752137 | 9.5 x 3/8 | 9.5 | PF-3/8 | 35 | 109 | 42 |
| 752138 | 11 x 3/8 | 11 | PF-3/8 | 35 | 115 | 42 |
