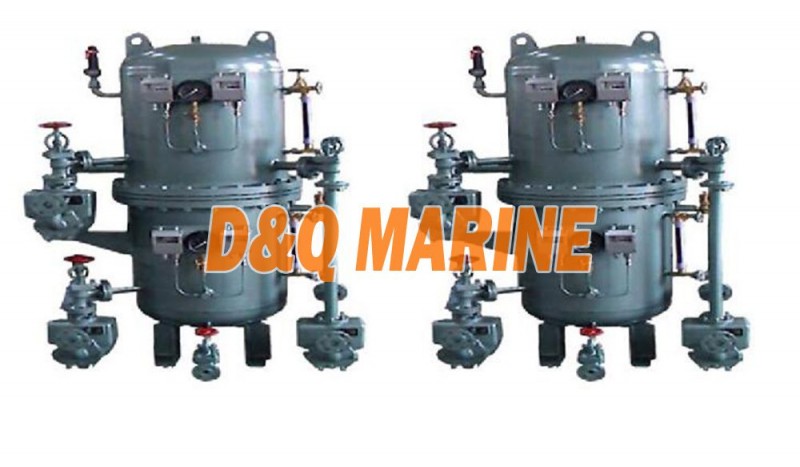

ZYG(S) series combined pressure water tank
Description:
-series-combined-pressure-water-tank-1.png)
ZYG(S) series combined pressure water tank, it is composite by sea water tank and fresh water tank. It an integration of pressure water tank, water pump and valve pipe, it is the best water supply unit that is applicable to various types of sea water and fresh water piping water supply systems. It have the characteristics of modular unit, compact structure, beautiful shape and easy installation and maintenance.
Technical Data:
-series-combined-pressure-water-tank-1.jpg)
| Model | Volume(m3) |
Design Pressure (Mpa） |
Working Pressure (Mpa） |
Water pump model |
Motor Power (kw) |
Capacity (m3/h) |
| ZYG-0.2 | 0.2 | 0.5 | 0.4 | 1.5CWX-2 | 2.2 | 3 |
| ZYG-0.3 | 0.3 | 1.5CWX-2 | ||||
| ZYG-0.4 | 0.4 | 1.5CWX-2 | ||||
| ZYG-0.5 | 0.5 | 1.5CWX-2 | ||||
| ZYG-0.6 | 0.6 | 1.5CWX-2 |
| Model | Overall Size(mm） | Base Size |
Water Inlet mm |
water outlet of upper
tank mm |
water outlet of nether
tank mm |
Draining Outlet mm |
||||
| DN | L | B | H | a | b | |||||
| ZYG-0.2 | 500 | 1150 | 720 | 1596 | 1050 | 600 | 40 | 25 | 25 | 20 |
| ZYG-0.3 | 500 | 1135 | 735 | 2077 | 1050 | 600 | 25 | 25 | 20 | |
| ZYG-0.4 | 600 | 1240 | 756 | 1920 | 1080 | 600 | 25 | 25 | 20 | |
| ZYG-0.5 | 650 | 1306 | 895 | 1982 | 1190 | 780 | 32 | 32 | 20 | |
| ZYG-0.6 | 650 | 1306 | 895 | 2220 | 1190 | 780 | 32 | 32 | 20 | |
