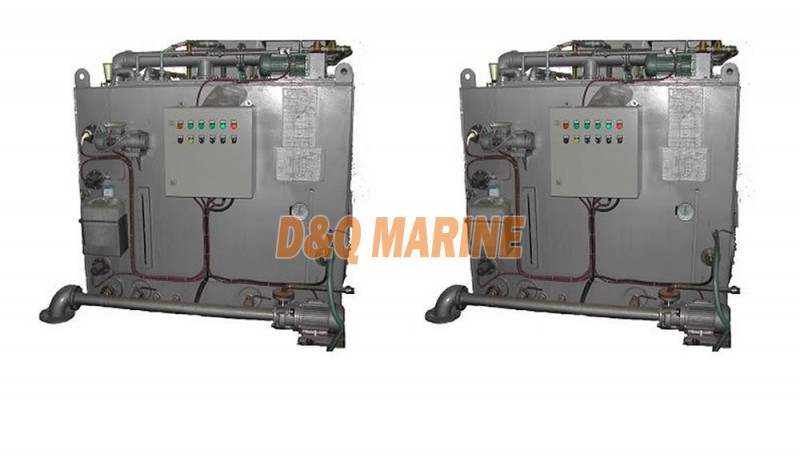

WCMBR-50 Marine Sewage Treatment Plant
Model Instruction:
Description:
The method of combining catalytic oxidation and physical disinfestations and sterilization is adopted in the WCMBR series domestic sewage treatment device; it treats the domestic sewage of kitchens, W.C.,and base room from ship. Since filler is set in the aeration chamber, the chlorine adding sterilization si adopted,so compare with the products of the same kind, it has the characteristics of small cubage, light weight, compact structure and without secondary pollution. The discharged water after the treatment of the device has reached the effluent standard stipulated internationally, and it accords with the requirement of Resolution MEPC.159(55) of International Marine Organization Environmental Protection Commission, and International waste fluid effluent standard.
Technical Data:
| Model | WCMBR-50 |
| Suitable Number of People | 50 |
| Treatment load t/d | 3.85 |
| Organic load kg/d | 1.93 |
|
Installation
Dimentions L*W*H mm |
1900x1700x2121 |
| Drain standard | BOD5≤25mg/l, COD≤125mg/l,TSS≤mg/l, Coli group≤100pcs/100ml |
| Ulitrafilter | Advanced anti-soil ultrafiltration membrance |
| Back flushingwater pressure | 0.1-0.25Mpa |
| Power supply |
3Phase/AC380V/50HZ or
3Phase/AC440V/600HZ 220V/50HZ or 3Phase AC415V/50HZ |
| Control mode | Automatic/Manual |
