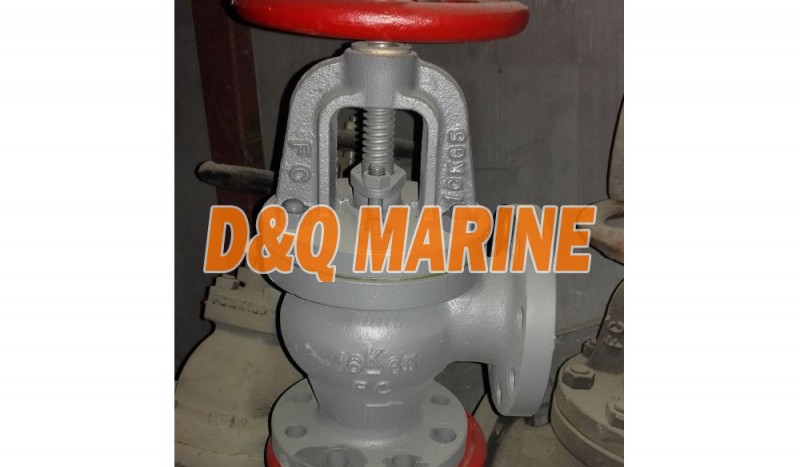

Marine Cast Iron 16K Screw Down Check Angle Valve JIS F7378

Marine Cast Iron 16K Screw Down Check Angle Valve JIS F7378

China Marine Cast Iron 16K Screw Down Check Angle Valve JIS F7378:

Marine Cast Iron Screw Down Check Angle Valve JIS F7378 is the angle SDNR valve used in the marine steam,air, fuel oil, lubrication oil, fresh water and water feeding lines. The function is to shut off/turn on the medium and adjust the flow rate.

Technical Specification:

1. Design & Manufacturing Standard: JIS F7378-1996

2. Inspection and Test Standard: JIS F7400

3. Suitable Medium: Steam, Oil, Water..etc.

4. Flange Standard: JIS B2220 16K FF

5. Hydraulic Test Pressure: 3.3Mpa for body, 2.42Mpa~0.4Mpa for seat.

Main Material:

Class B:

1.Body/Bonnet---Cast Iron

2. Seat---Bronze

3. Disc---Bronze

4. Stem---Brass

Class S:

1.Body/Bonnet---Cast Iron

2. Seat---Stainless Steel

3. Disc---Stainless Steel

4. Stem---Stainless Steel

Max Working Pressure:

Main Size(mm):
