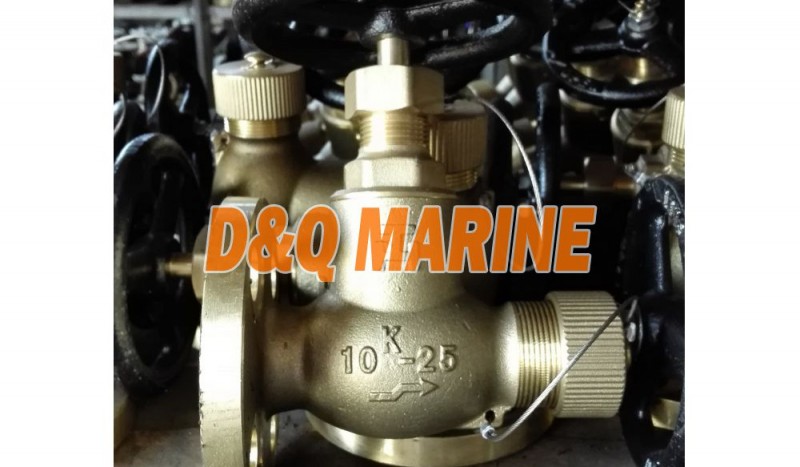

Marine Bronze/Brass Globe Hose Valve JIS F7334A 10K

Marine Bronze/Brass Globe Hose Valve JIS F7334A 10K

China Marine Bronze/Brass Globe Hose Valve JIS F7334A 10K:

Marine Globe Hose Valve is straight fire hydrant used in the ship or vessel. It controls the opening/closing of fire fighting water, the fire hose and nozzle are connected with the hose valve to quench a fire.

If the nominal size is DN15,DN25, it is the screwed bonnet. If the nominal size is DN40,DN50, DN65, it is bolted bonnet.

Technical Specification:

1.Design & Manufacturing Standard: JIS F7334

2.Inspection & Test Standard: JIS F7400

3. Connection Type: Flange

4.Flange Standard: JIS B2220 10K

5.Hydraulic Pressure Test: Body-2.1Mpa, Seat-1.54Mpa

6. Max Working Pressure: 1.0Mpa for pulsation water, ari and steam of 205℃ or less, 1.4Mpa for non-shock water of 120℃ or less.

7. Warranty: 12months

8. Certificate: CCS, ABS, BV, DNV/GL, RINA, LR, NK, IRS, RMRS

Main Material:

1-Body: Bronze / Brass

2-Disc: Bronze / Brass

3-Stem: Brass

4-Coupling: Brass

Main Data for Joining(mm):
