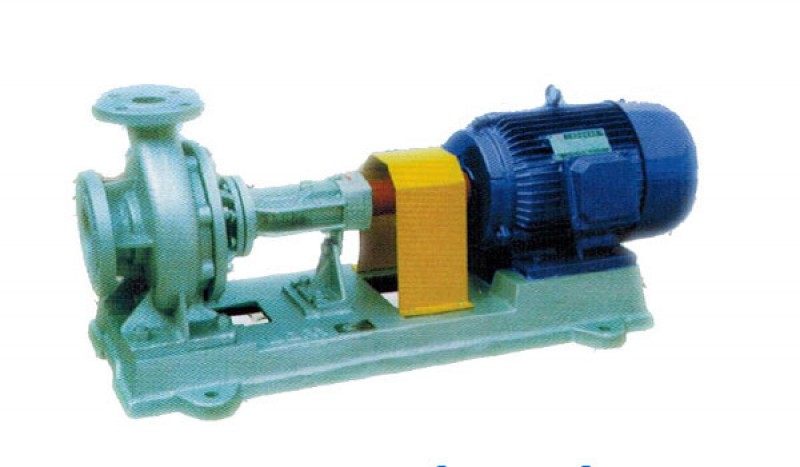

LQRY Series Thermal Oil Pump(Thermal Conductive Oil Pump):
China LQRY Series Thermal Oil Pump(Thermal Conductive Oil Pump):
LQRY series hot oil pumps are widely used in the heating system of heat carrier in our country. They have been used in petroleum, chemical industry, rubber, plastic, pharmaceutical, prevention, printing and dyeing, road construction, food and other industrial fields. They are mainly used for conveying high temperature liquid with weak corrosion without solid particles.
1-1.jpg)
| Main Technical Data | ||||
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 26-20-100 | 4.5 | 15 | 2850 | 0.45 |
| 50-32-150 | 8 | 22 | 2740 | 1 |
| 50-32-160 | 10 | 25 | 2840 | 1.5 |
| 65-40-160 | 12.5 | 25 | 2880 | 2.5 |
| 50-50-170 | 12.5 | 32 | 2890 | 3.2 |
| 65-50-180 | 32 | 32 | 2900 | 4.5 |
| 65-50-170 | 40 | 25 | 2900 | 4.5 |
| 100-65-190 | 40 | 40 | 2900 | 6.7 |
| 100-65-200 | 60 | 20 | 2930 | 6.7 |
| 100-65-220 | 60 | 38 | 2930 | 9.2 |
| 100-65-230 | 80 | 40 | 2930 | 12.5 |
| 100-65-240 | 58 | 50 | 2940 | 12.5 |
| 100-65-257 | 100 | 55 | 2950 | 19.5 |
| 125-100-190 | 100 | 70 | 2970 | 25.5 |
