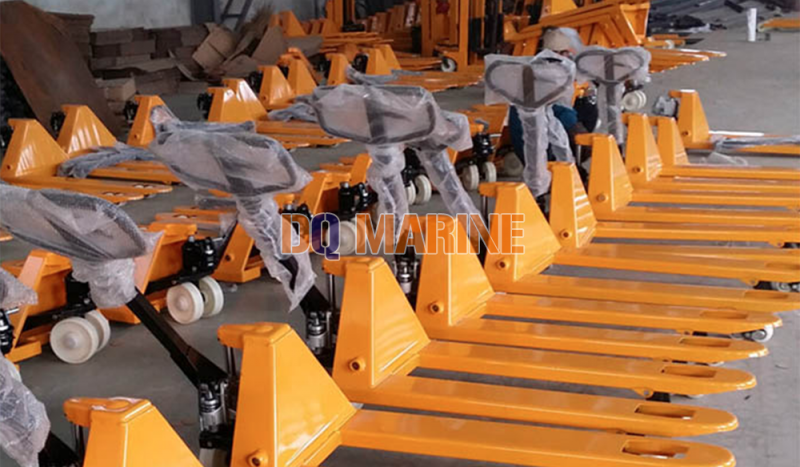

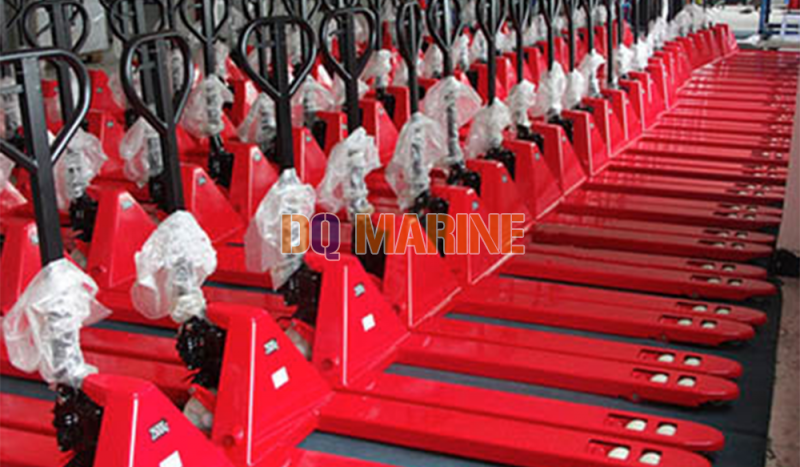

Manual Hydraulic Truck
Manual Hydraulic Truck Introduction
The complete hydraulic pump without other welding, avoid oil leakage.
The material of the truck is high strength steel plate, reliable and safe.
Optional choose: Material of the wheel, and the length and width of fork.
Product Details
| TYPE | HL-N-2 | HL-W-2 | HL-N-2.5 | HL-W-2.5 | HL-N-3 | HL-W-3 | |
| Rated Load | KG | 2000 | 2500 | 3000 | |||
| Min Distance (Between Fork and Floor) | H（mm） | 80 | 80 | 80 | |||
| Max Distance (Between Fork and Floor) | H1（mm） | 190 -200 | 190-200 | 190-200 | |||
| Max Lifting Height | mm | ≥110 | |||||
| Fork Width | B(mm) | 550 | 685 | 550 | 685 | 550 | 685 |
| Fork Length | L(mm) | 1200 | |||||
| Fork Size | mm | 150*55 | 150*55 | 160*60 | |||
| Supported Wheel Size (double) | mm | Φ80x70 | Φ80x70 | Φ80x70 | |||
| Steering Wheel(single) | mm | Φ180x50 | Φ180x50 | Φ180x50 | |||
| Wheel Material | Nylon / Polyurethane / Rubber | ||||||
| Net Weight | kg | 68 | 70 | 73 | 75 | 78 | 80 |
