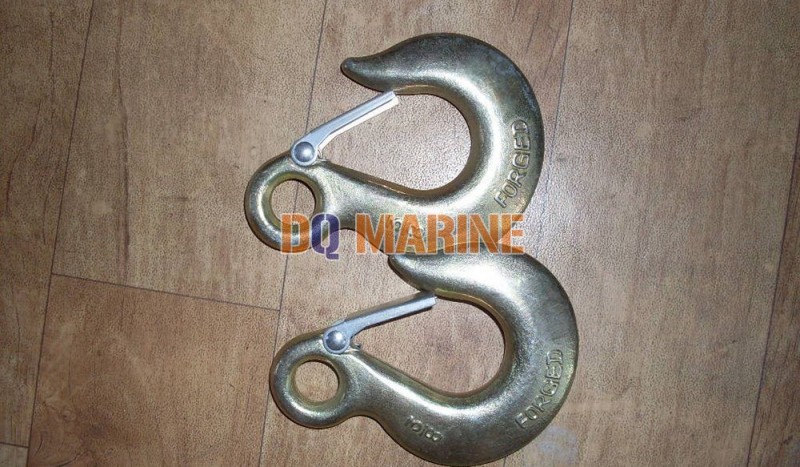

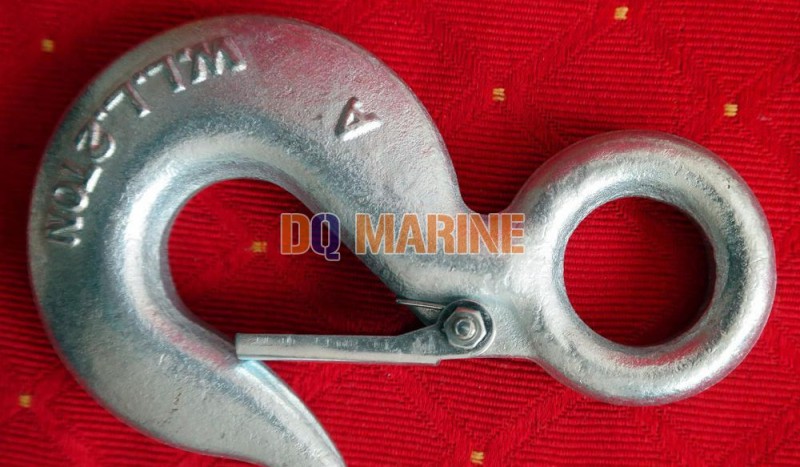

Eye Ship Hooks with Latches
Introduction
This product adopts American standard, is made of 45 steel and 40Cr, and it is built with die forging process, the working load Limit is from0.5T to 15T, it also has advantages of small volume , light weight and high hardness, Surface can be electro galvanized , hot galvanized or kept original color.
Ultimate Load is 4 times the Working Load Limit.
Product Details
Eye Ship Hooks with Latches sizes table
| Size (in) | WLL (lbs) | Dimensions（in） | Weight (Ibs) | |||
| H-324 | A-324 | B | E | R | ||
| 1/4 | 1950 | 2750 | 0.5 | 0.94 | 2.56 | 0.4 |
| 5/16 | 2875 | 4300 | 0.63 | 1.06 | 2.95 | 0.7 |
| 3/8 | 4000 | 5250 | 0.72 | 1.31 | 3.36 | 1 |
| 7/16 | 5000 | 7000 | 0.81 | 1.56 | 3.88 | 1.6 |
| 1/2 | 6500 | 9000 | 0.94 | 1.69 | 4.28 | 2.4 |
| 5/8 | 9250 | 13500 | 1.13 | 2 | 5.22 | 4 |
| 3/4 | 12500 | 19250 | 1.38 | 2.13 | 5.8 | 6.5 |
