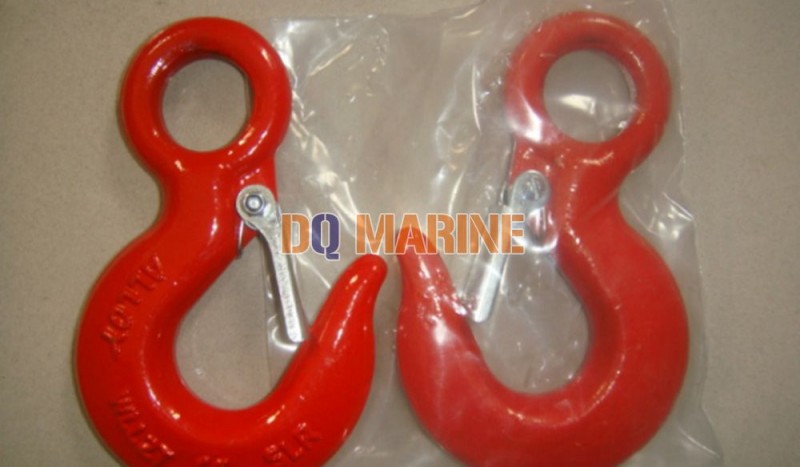

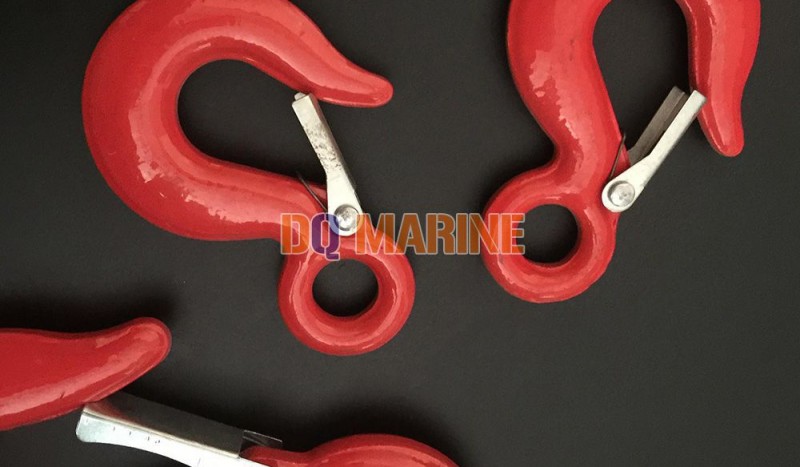

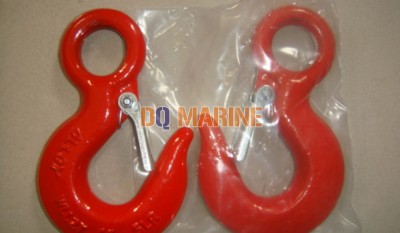

Eye Hooks with Latch S-320
Description
This product adopt American standard, the materials are 45Cr and 45 steel, it is made by die forging process, The size is from 0.5t to 15t, Surface can be sprayed plastic.
Proof Load is 2 times Working Load Limit.
Ultimate Load is 5 times Working Load Limit.
Product Details
Eye Hooks with Latch S-320 sizes details
| WLL(t) | Dimensions（in） | Weight(lbs) | ||||
| 320C | 320A | B | R | O | T | |
| 1/2 | 3/4 | 0.63 | 2.8 | 0.81 | 0.65 | 0.37 |
| 3/4 | 1 | 0.75 | 3.22 | 0.88 | 0.81 | 0.57 |
| 1 | 1 1/2 | 0.91 | 3.66 | 0.97 | 0.81 | 0.77 |
| 1 1/2 | 2 | 1.12 | 4.09 | 1 | 0.84 | 1.28 |
| 2 | 3 | 1.25 | 4.69 | 1.12 | 1.19 | 1.73 |
| 3 | 4 1/2 | 1.56 | 5.78 | 1.34 | 1.38 | 3.66 |
| 5 | 7 | 2 | 7.38 | 1.69 | 1.78 | 7.19 |
| 7 1/2 | 11 | 2.44 | 9.06 | 2.06 | 2.12 | 13.17 |
| 10 | 15 | 2.83 | 10.09 | 2.22 | 2.72 | 22.15 |
