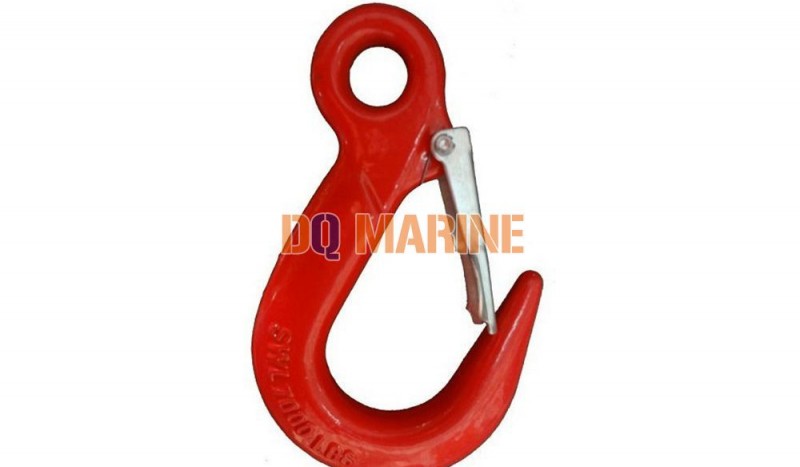

Large Opening Hooks
Introduction
This product adopts American standard, is made of 45 steel and 40Cr, and it is built by die forging process, it also has advantages of small volume, light weight and high kept original color, Surface can be sprayed plastics.
Ultimate Load is 4 times the Working Load Limit.
Product Details
Large Opening Hooks sizes table
| WLL(t) | B.L(t) | Dimensions(mm) | Weight (Ibs) | ||||||
| A | B | C | L | R | E | H | |||
| 3.2 | 4.4 | 23 | 97 | 16 | 162 | 133 | 37 | 20.6 | 1.1 |
| 3.1 | 6.2 | 22 | 108 | 20.3 | 168 | 133.5 | 40 | 24 | 1.63 |
