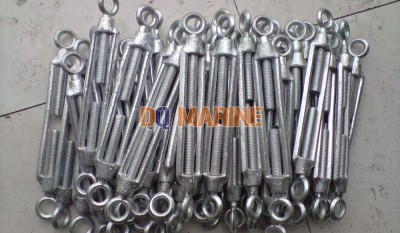

Korean Type Turnbuckles:
Description
Korean Type Turnbuckles adopt Korean standard, the body material is malleable iron, and the other part material is Q235 steel. This product is built by casting process, the surface can be electro galvanized or hot galvanizing or original color.
Product Details
Korean Type Turnbucklessizes table
| Size (in) | Dimensions(mm) | Weight (lbs) | ||||||
| A | B | C | D | E | F | G | ||
| 3/16" | 57.4 | 41.2 | 41.5 | 18.4 | 15 | 36 | 54.6 | 66 |
| 5/16" | 90 | 70 | 8 | 11 | 22 | 65 | 95 | 320 |
| 3/8" | 160 | 130 | 9 | 17 | 30 | 85 | 130 | 761 |
| 1/2" | 190 | 155 | 10 | 20 | 30 | 95 | 150 | 1236 |
| 1/2"(Long) | 255 | 215 | 10 | 30 | 35 | 140 | 190 | 1743 |
| 5/8" | 250 | 200 | 15 | 25 | 45 | 130 | 190 | 2471 |
| 5/8"(Long) | 350 | 300 | 15 | 30 | 45 | 180 | 240 | 3398 |
| 3/4" | 250 | 200 | 20 | 35 | 45 | 140 | 210 | 3685 |
| 3/4"(Long) | 300 | 245 | 20 | 40 | 55 | 170 | 240 | 4523 |
