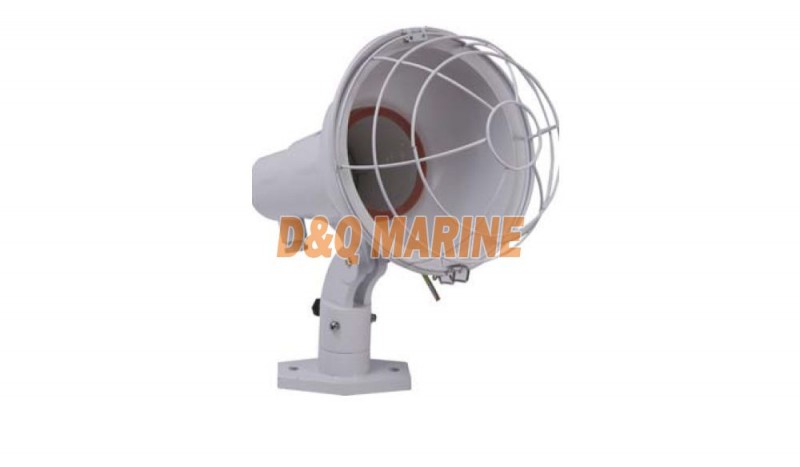

TG64 Spot Light
The scope of application
TG64 Spot Light is designed to use for illumination at engine cabin of warship, or operation on desk.
Products feature
1. Easy to install and replace the bulbs.
2. The body of light adopt aluminum alloy material shaped by molding.
3. Rotate the body of light 180 degree in horizontal and adjusted 45 degree in pitch.
4. The cable outside diameter is Φ10～Φ14mm.
Adopt standard and product certification
1. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
2. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
Installation
TG64 Spot Light Specification
| Type | TG64 | |
| Voltage(V) | 220V/60HZ,220V/50HZ | |
| Lamp Holder | E40 | |
| Llluminant | Incandescent Lamp | |
| Power(W) | 300/500 | |
| Protection Class | IP34 | |
| Weight( Kg) | 3.3 | |
