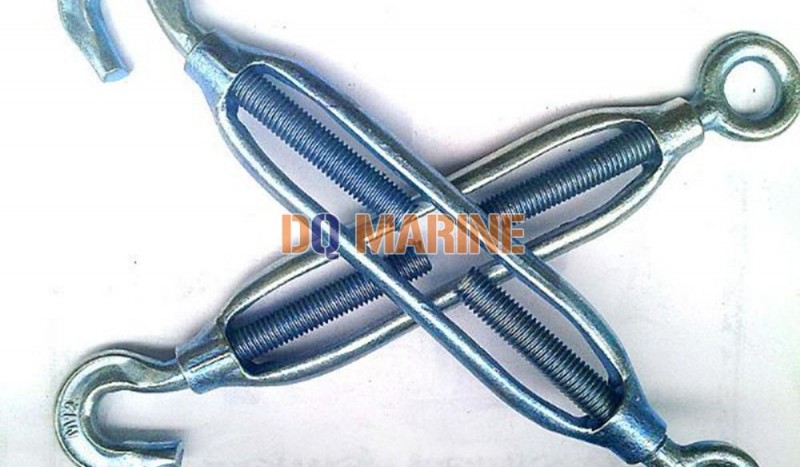

JIS Type Frame Turnbuckles
Description
JIS Type Frame Turnbuckles adopt Japanese standard, the material is Q235 steel. This product is built by free forging process, the surface can be electro galvanized. The max working load is 3.5 ton.
Product Details
JIS Type Frame Turnbucklessizes table
| Size (D) | Body Only | Eye&Eye | Hook&Eye | Hook&Hook | With Stubs | ||||||||||||||
| A | B | C | T.L | W/PC | F | T.L | W/PC | T.L | W/PC | E | T.L | W/PC | H | I | G | W/PC | |||
| mm | in | mm | in | mm | mm | t | lbs | mm | t | lbs | t | lbs | mm | t | lbs | mm | mm | mm | lbs |
| 6 | 1/4 | 100 | 4 | 78 | 11 | 1 | 2.21 | 10 | 0.1 | 0.3 | 0.04 | 0.25 | 9 | 0.04 | 0.25 | 80 | 50 | 5.3 | 11.69 |
| 8 | 5/16 | 125 | 5 | 100 | 12.5 | 1.2 | 2.65 | 12 | 0.2 | 0.5 | 0.08 | 0.48 | 9 | 0.08 | 0.47 | 100 | 63 | 6.9 | 15.23 |
| 9 | 3/8 | 150 | 6 | 120 | 12.5 | 1.5 | 3.31 | 16 | 0.5 | 0.7 | 0.15 | 0.65 | 11 | 0.15 | 0.64 | 130 | 75 | 8.3 | 18.31 |
| 12 | 1/2 | 200 | 8 | 164 | 18 | 2 | 4.41 | 20 | 2 | 1.3 | 0.35 | 1.29 | 16 | 0.35 | 1.26 | 150 | 100 | 11.2 | 24.71 |
| 16 | 5/8 | 250 | 10 | 202 | 21.5 | 3 | 6.62 | 22 | 3 | 2.4 | 0.7 | 2.32 | 19 | 0.7 | 2.27 | 180 | 125 | 14.2 | 31.33 |
| 19 | 3/4 | 300 | 12 | 250 | 25 | 4 | 8.83 | 28 | 4 | 3.9 | 1 | 3.93 | 20 | 1 | 3.91 | 220 | 150 | 17.2 | 37.95 |
| 22 | 7/8 | 325 | 13 | 269 | 28 | 5 | 11.03 | 33 | 5 | 5.6 | 1.5 | 5.69 | 21 | 1.5 | 5.74 | 250 | 165 | 20.3 | 44.79 |
| 25 | 1 | 350 | 14 | 285 | 32.5 | 6 | 13.24 | 35 | 6 | 8.4 | 2 | 8.32 | 26 | 2 | 8.21 | 270 | 175 | 23.3 | 51.41 |
| 32 | 1 1/4 | 400 | 16 | 310 | 45 | 8 | 17.65 | 36*70 | 10 | 16.8 | 3 | 16.6 | 34 | 3 | 16.4 | 300 | 200 | 29 | 63.99 |
| 38 | 1 1/2 | 450 | 18 | 350 | 55 | 10 | 22.07 | 40*80 | 15 | 29.8 | 4 | 28.2 | 35 | 4 | 48.5 | 330 | 225 | 38 | 83.85 |
